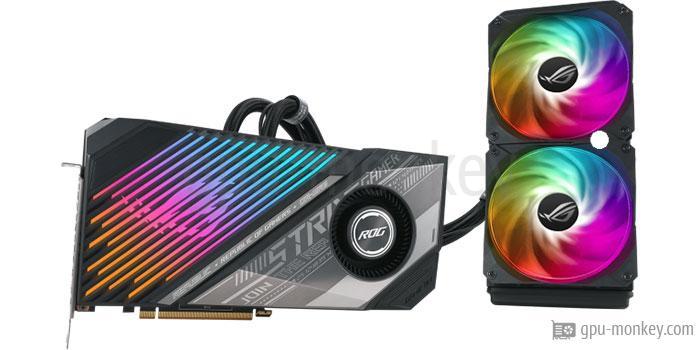

ASUS ROG Strix LC Radeon RX 6900 XT TOP
Benchmark and Specs
Last updated:
Benchmark and Specs
Here we show you benchmarks and technical data for the ASUS ROG Strix LC Radeon RX 6900 XT TOP. The graphics card is based on the AMD Radeon RX 6900 XT (RDNA 2) and has 16 GB GDDR6 graphics memory with a memory bandwidth of 512 GB/s. The ASUS ROG Strix LC Radeon RX 6900 XT TOP has 80 execution units with 5120 shaders.
GPUThe ASUS ROG Strix LC Radeon RX 6900 XT TOP has 5120 shaders and 80 execution units. The graphics card thus achieves a theoretical FP32 computing power of 25.86 TFLOPS. |
|
| Based on: | AMD Radeon RX 6900 XT |
| GPU Chip: | Navi 21 (RDNA 2) |
| Streaming Multiprocessors: | 80 |
| Shader: | 5120 |
| Render Output Units: | 128 |
| Texture Units: | 320 |
| Raytracing Cores: | 80 |
MemoryThe ASUS ROG Strix LC Radeon RX 6900 XT TOP can use 16 GB graphics memory of the type GDDR6. The graphics card thus achieves a memory bandwidth of 512 GB/s on a 256 bit wide memory interface. |
|
| Memory Size: | 16 GB |
| Memory Type: | GDDR6 |
| Memory Clock: | 2.000 GHz |
| Memory Speed: | 16.0 Gbps |
| Memory bandwidth: | 512 GB/s |
| Memory Interface: | 256 bit |
Clock SpeedsThe base clock frequency of the ASUS ROG Strix LC Radeon RX 6900 XT TOP is 1.950 GHz. A high clock frequency (even in turbo mode) can greatly increase the speed of a graphics card. |
|
| Base Clock: | 1.950 GHz + 7 % |
| Boost Clock: | 2.525 GHz+ 12 % |
| Avg (Game) Clock: | 2.375 GHz+ 18 % |
| Overclocking: | Yes |
Thermal DesignThe TDP (Thermal Design Power) of the ASUS ROG Strix LC Radeon RX 6900 XT TOP is 300 W. The graphics card is supplied with energy via the 3 x 8-Pin connector. |
|
| TDP: | 300 W |
| TDP (up): | 345 W |
| Tjunction max: | 100 °C |
| PCIe-Power: | 3 x 8-Pin |
Cooler & FansThe ASUS ROG Strix LC Radeon RX 6900 XT TOP has a total of 0 Axial fans to cool the graphics processor and graphics memory. |
|
| Fan-Type: | Axial |
| Fan 1: | -- |
| Fan 2: | -- |
| Cooler-Type: | AIO water cooling |
| Noise (Idle): | 0 dB / Silent |
| Noise (Load): | 0 dB |
ConnectivityUp to 4 screens can be connected to the ASUS ROG Strix LC Radeon RX 6900 XT TOP. |
|
| Max. Displays: | 4 |
| HDCP-Version: | 2.3 |
| HDMI Ports: | 1x HDMI v2.1 |
| DP Ports: | 2x DP v1.4a |
| DVI Ports: | -- |
| VGA Ports: | -- |
| USB-C Ports: | 1 |
FeaturesetThe ASUS ROG Strix LC Radeon RX 6900 XT TOP has a maximum resolution of 7680x4320 pixels. The graphics card supports the DirectX 12_2 (Ultimate) standard. |
|
| Max. resolution: | 7680x4320 |
| DirectX: | 12_2 (Ultimate) |
| Raytracing: | Yes |
| DLSS / FSR: | Yes |
| LED: | ASUS Aura Sync |
Supported Video CodecsThe video codecs accelerated in hardware by the ASUS ROG Strix LC Radeon RX 6900 XT TOP reduce the processor load and ensure lower energy consumption. |
|
| h264: | Decode / Encode |
| h265 / HEVC: | Decode / Encode |
| VP8: | Decode / Encode |
| VP9: | Decode / Encode |
| AV1: | Decode |
DimensionsThe ASUS ROG Strix LC Radeon RX 6900 XT TOP is 277 mm long and 131 mm high. With a width of 44 mm, the graphics card requires 2 PCIe-Slots in the case. |
|
| Length: | 277 mm |
| Height: | 131 mm |
| Width: | 44 mm |
| Width (Slots): | 2 PCIe-Slots |
| Weight: | -- |
| SFF-Ready: | No |
Additional dataThe ASUS ROG Strix LC Radeon RX 6900 XT TOP made in 7 nm was published in Q2/2021 for 999 $ (Reference). |
|
| GPU Interface: | PCIe 4.0 x 16 |
| Release date: | Q2/2021 |
| Launch Price: | 999 $ (Reference) |
| Structure size: | 7 nm |
| Part-no: | ROG-STRIX-LC-RX6900XT-T16G-GAMING |
| Documents: | data sheet |
1.950 GHz, 16 GB (300 W TDP)
Buy this graphic card at amazon!
Rate this graphics card
Benchmark results
3DMark Benchmark (DirectX, Raytracing)
3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.
Time Spy Extreme Graphics score
|
ASUS ROG Strix LC Radeon RX 6900 XT TOP
16 GB GDDR6 |
||
|
AMD Radeon RX 6900 XT
Average of gpu group |
||
Port Royal (Raytracing)
|
|
ASUS ROG Strix LC Radeon RX 6900 XT TOP
16 GB GDDR6 |
||
|
|
AMD Radeon RX 6900 XT
Average of gpu group |
||
Speed Way Graphics Score (Raytracing)
|
|
ASUS ROG Strix LC Radeon RX 6900 XT TOP
16 GB GDDR6 |
||
|
|
AMD Radeon RX 6900 XT
Average of gpu group |
||
Cyberpunk 2077
Cyberpunk 2077 was developed by CD Projekt Red and is based on the development studio's own REDengine 4. Ray tracing is switched off in our benchmarks.
3840x2160 (2160p)
|
|
ASUS ROG Strix LC Radeon RX 6900 XT TOP
16 GB GDDR6 |
||
|
|
AMD Radeon RX 6900 XT
Average of gpu group |
||
2560x1440 (1440p)
|
|
ASUS ROG Strix LC Radeon RX 6900 XT TOP
16 GB GDDR6 |
||
|
|
AMD Radeon RX 6900 XT
Average of gpu group |
||
1920x1080 (1080p)
|
|
ASUS ROG Strix LC Radeon RX 6900 XT TOP
16 GB GDDR6 |
||
|
|
AMD Radeon RX 6900 XT
Average of gpu group |
||
The Last of Us Part 1
The Last of Us Part One is a game released by Sony in June 2013 exclusively for the Playstation and released for the PC in early 2023. The benchmark values here were determined at high details.
3840x2160 (2160p)
|
|
ASUS ROG Strix LC Radeon RX 6900 XT TOP
16 GB GDDR6 |
||
|
|
AMD Radeon RX 6900 XT
Average of gpu group |
||
2560x1440 (1440p)
|
|
ASUS ROG Strix LC Radeon RX 6900 XT TOP
16 GB GDDR6 |
||
|
|
AMD Radeon RX 6900 XT
Average of gpu group |
||
1920x1080 (1080p)
|
|
ASUS ROG Strix LC Radeon RX 6900 XT TOP
16 GB GDDR6 |
||
|
|
AMD Radeon RX 6900 XT
Average of gpu group |
||
Battlefield 5
Battlefield 5 is a visually stunning game that is ideal as a graphics card benchmark. We test the game with maximum details on Windows 10.
3840x2160 (2160p)
|
|
ASUS ROG Strix LC Radeon RX 6900 XT TOP
16 GB GDDR6 |
||
|
|
AMD Radeon RX 6900 XT
Average of gpu group |
||
2560x1440 (1440p)
|
|
ASUS ROG Strix LC Radeon RX 6900 XT TOP
16 GB GDDR6 |
||
|
|
AMD Radeon RX 6900 XT
Average of gpu group |
||
1920x1080 (1080p)
|
|
ASUS ROG Strix LC Radeon RX 6900 XT TOP
16 GB GDDR6 |
||
|
|
AMD Radeon RX 6900 XT
Average of gpu group |
||
Geekbench 6 (OpenCL, Vulkan, Metal)
Geekbench 6 is a cross-platform benchmark for main processors, which also carries out 3 different graphics benchmarks and outputs them in the form of a numerical value.
Geekbench 6 - OpenCL
|
|
ASUS ROG Strix LC Radeon RX 6900 XT TOP
16 GB GDDR6 |
||
|
|
AMD Radeon RX 6900 XT
Average of gpu group |
||
Geekbench 6 - Vulkan
|
|
ASUS ROG Strix LC Radeon RX 6900 XT TOP
16 GB GDDR6 |
||
|
|
AMD Radeon RX 6900 XT
Average of gpu group |
||
Geekbench 6 - Metal
|
|
ASUS ROG Strix LC Radeon RX 6900 XT TOP
16 GB GDDR6 |
||
|
|
AMD Radeon RX 6900 XT
Average of gpu group |
||
FP32 Performance (Single-precision TFLOPS)
The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.
FP32 (TFLOPS)
|
|
ASUS ROG Strix LC Radeon RX 6900 XT TOP
16 GB GDDR6 |
||
