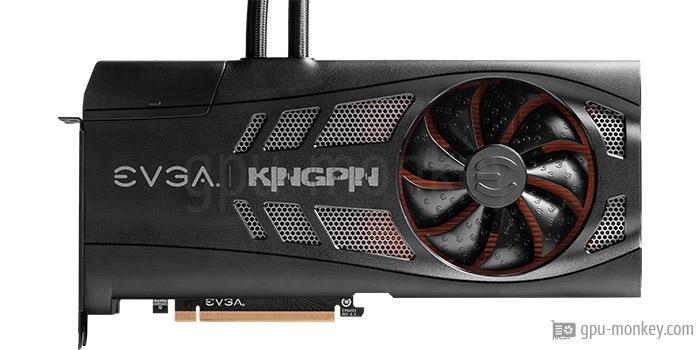

EVGA GeForce RTX 3090 KINGPIN HYBRID GAMING
Last updated:
Benchmark and Specs
All technical data and various benchmarks of the EVGA GeForce RTX 3090 KINGPIN HYBRID GAMING are listed on this page. The graphics card is based on the GA102-300-A1 (Ampere) graphics chip, which is manufactured with a structure width of 8 nm. The EVGA GeForce RTX 3090 KINGPIN HYBRID GAMING can operate up to 4 screens with a maximum resolution of up to 7680x4320 become.
GPUThe EVGA GeForce RTX 3090 KINGPIN HYBRID GAMING has 82 execution units with 10496 shaders. This gives the graphics card a theoretical FP32 computing power of 40.30 TFLOPS. |
|
| Based on: | NVIDIA GeForce RTX 3090 |
| GPU Chip: | GA102-300-A1 (Ampere) |
| Streaming Multiprocessors: | 82 |
| Shader: | 10496 |
| Render Output Units: | 112 |
| Texture Units: | 328 |
| Raytracing Cores: | 82 |
MemoryThe EVGA GeForce RTX 3090 KINGPIN HYBRID GAMING is equipped with 24 GB graphics memory of the type GDDR6X. The memory clock of the graphics card is 1.219 GHz and the speed is 19.5 Gbps. |
|
| Memory Size: | 24 GB |
| Memory Type: | GDDR6X |
| Memory Clock: | 1.219 GHz |
| Memory Speed: | 19.5 Gbps |
| Memory bandwidth: | 936 GB/s |
| Memory Interface: | 384 bit |
Clock SpeedsThe base frequency of this graphics card is 1.395 GHz and the manufacturer specifies the maximum turbo clock as 1.920 GHz. If supported (see below), the performance can be further increased by overclocking. |
|
| Base Clock: | 1.395 GHz |
| Boost Clock: | 1.920 GHz + 13 % |
| Avg (Game) Clock: | |
| Overclocking: | Yes |
Thermal DesignThe EVGA GeForce RTX 3090 KINGPIN HYBRID GAMING is powered by 3 x 8-Pin connectors. The TDP (Thermal Design Power) of the graphics card is 420 W. |
|
| TDP: | 420 W+ 20 % |
| TDP (up): | 450 W |
| Tjunction max: | 93 °C |
| PCIe-Power: | 3 x 8-Pin |
Cooler & FansGraphics processor and graphics memory of the EVGA GeForce RTX 3090 KINGPIN HYBRID GAMING are cooled by a AIO water cooling. |
|
| Fan-Type: | Axial |
| Fan 1: | 1 x 90 mm |
| Fan 2: | 3 x 90 mm |
| Cooler-Type: | AIO water cooling |
| Noise (Idle): | 0 dB / Silent |
| Noise (Load): | -- |
ConnectivityUp to 4 monitors can be operated with the EVGA GeForce RTX 3090 KINGPIN HYBRID GAMING. |
|
| Max. Displays: | 4 |
| HDCP-Version: | 2.3 |
| HDMI Ports: | 1x HDMI v2.1 |
| DP Ports: | 3x DP v1.4a |
| DVI Ports: | -- |
| VGA Ports: | -- |
| USB-C Ports: | -- |
FeaturesetWith the EVGA GeForce RTX 3090 KINGPIN HYBRID GAMING it is possible to operate a screen with a resolution of up to 7680x4320 pixels. Furthermore, the DirectX standard version 12_2 (Ultimate) is supported. |
|
| Max. resolution: | 7680x4320 |
| DirectX: | 12_2 (Ultimate) |
| Raytracing: | Yes |
| DLSS / FSR: | Yes |
| LED: | No LED lighting |
Supported Video CodecsThis area lists the video codecs that the EVGA GeForce RTX 3090 KINGPIN HYBRID GAMING can decode or encode in hardware in order to minimize the processor load, which leads to lower power consumption. |
|
| h264: | Decode / Encode |
| h265 / HEVC: | Decode / Encode |
| VP8: | Decode |
| VP9: | Decode |
| AV1: | Decode |
DimensionsThe EVGA GeForce RTX 3090 KINGPIN HYBRID GAMING needs the space of 2 PCIe-Slots in a case. It is 289 mm long, 138 mm high and -- wide. |
|
| Length: | 289 mm |
| Height: | 138 mm |
| Width: | -- |
| Width (Slots): | 2 PCIe-Slots |
| Weight: | -- |
Additional dataThe EVGA GeForce RTX 3090 KINGPIN HYBRID GAMING was released in Q4/2020 at a price of 2,070 $. The graphics card manufactured in 8 nm is connected to the system via PCIe 4.0 x 16 lanes. |
|
| GPU Interface: | PCIe 4.0 x 16 |
| Release date: | Q4/2020 |
| Launch Price: | 2,070 $ |
| Structure size: | 8 nm |
| Part-no: | 24G-P5-3998-KR |
| Documents: | data sheet |
1.395 GHz, 24 GB (420 W TDP)
Buy this graphic card at amazon!
Benchmark results
3DMark Benchmark (DirectX, Raytracing)
3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.Time Spy Extreme Graphics score
|
EVGA GeForce RTX 3090 KINGPIN HYBRID GAMING
24 GB GDDR6X |
||
|
NVIDIA GeForce RTX 3090
Average of gpu group |
||
Port Royal (Raytracing)
|
|
EVGA GeForce RTX 3090 KINGPIN HYBRID GAMING
24 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 3090
Average of gpu group |
||
Speed Way Graphics Score (Raytracing)
|
|
EVGA GeForce RTX 3090 KINGPIN HYBRID GAMING
24 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 3090
Average of gpu group |
||
Cyberpunk 2077
Cyberpunk 2077 was developed by CD Projekt Red and is based on the development studio's own REDengine 4. Ray tracing is switched off in our benchmarks.3840x2160 (2160p)
|
|
EVGA GeForce RTX 3090 KINGPIN HYBRID GAMING
24 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 3090
Average of gpu group |
||
2560x1440 (1440p)
|
|
EVGA GeForce RTX 3090 KINGPIN HYBRID GAMING
24 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 3090
Average of gpu group |
||
1920x1080 (1080p)
|
|
EVGA GeForce RTX 3090 KINGPIN HYBRID GAMING
24 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 3090
Average of gpu group |
||
Battlefield 5
Battlefield 5 is a visually stunning game that is ideal as a graphics card benchmark. We test the game with maximum details on Windows 10.3840x2160 (2160p)
|
|
EVGA GeForce RTX 3090 KINGPIN HYBRID GAMING
24 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 3090
Average of gpu group |
||
2560x1440 (1440p)
|
|
EVGA GeForce RTX 3090 KINGPIN HYBRID GAMING
24 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 3090
Average of gpu group |
||
1920x1080 (1080p)
|
|
EVGA GeForce RTX 3090 KINGPIN HYBRID GAMING
24 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 3090
Average of gpu group |
||
FP32 Performance (Single-precision TFLOPS)
The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.FP32 (TFLOPS)
|
|
EVGA GeForce RTX 3090 KINGPIN HYBRID GAMING
24 GB GDDR6X |
||
More benchmarks
In order to determine the performance of a graphics card, so-called "benchmarks" are carried out. The benchmark software carries out special calculations to determine the performance of a graphics card. We use so-called theoretical or synthetic benchmarks (e.g. 3D Mark) as well as real game benchmarks. To ensure real comparability of the results, we pay attention to the correct execution of the benchmarks as well as the condition of the graphics card and the system.We use the following benchmarks to measure the performance of a graphics card:
