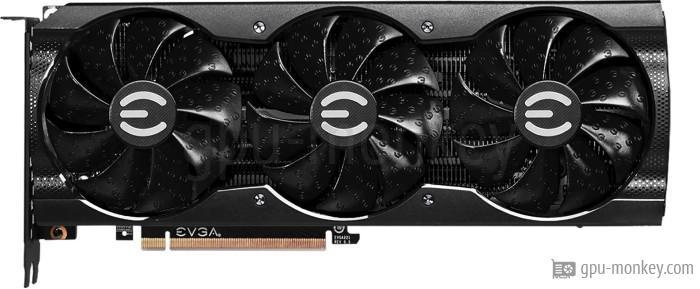

EVGA GeForce RTX 3090 XC3 BLACK GAMING


Last updated:

Benchmark and Specs

All technical data and various benchmarks of the EVGA GeForce RTX 3090 XC3 BLACK GAMING are listed on this page. The graphics card is based on the GA102-300-A1 (Ampere) graphics chip, which is manufactured with a structure width of 8 nm. The EVGA GeForce RTX 3090 XC3 BLACK GAMING can operate up to 4 screens with a maximum resolution of up to 7680x4320 become.

GPU

The EVGA GeForce RTX 3090 XC3 BLACK GAMING has 82 execution units with 10496 shaders. This gives the graphics card a theoretical FP32 computing power of 35.58 TFLOPS.

Based on: NVIDIA GeForce RTX 3090
GPU Chip: GA102-300-A1 (Ampere)
Streaming Multiprocessors: 82
Shader: 10496
Render Output Units: 112
Texture Units: 328
Raytracing Cores: 82

Memory

The EVGA GeForce RTX 3090 XC3 BLACK GAMING is equipped with 24 GB graphics memory of the type GDDR6X. The memory clock of the graphics card is 1.219 GHz and the speed is 19.5 Gbps.

Memory Size: 24 GB
Memory Type: GDDR6X
Memory Clock: 1.219 GHz
Memory Speed: 19.5 Gbps
Memory bandwidth: 936 GB/s
Memory Interface: 384 bit

Clock Speeds

The base frequency of this graphics card is 1.395 GHz and the manufacturer specifies the maximum turbo clock as 1.695 GHz. If supported (see below), the performance can be further increased by overclocking.

Base Clock: 1.395 GHz
Boost Clock: 1.695 GHz
Avg (Game) Clock:
Overclocking: Yes

Thermal Design

The EVGA GeForce RTX 3090 XC3 BLACK GAMING is powered by 2 x 8-Pin connectors. The TDP (Thermal Design Power) of the graphics card is 350 W.

TDP: 350 W
TDP (up): --
Tjunction max: 93 °C
PCIe-Power: 2 x 8-Pin

Cooler & Fans

Graphics processor and graphics memory of the EVGA GeForce RTX 3090 XC3 BLACK GAMING are cooled by a Air cooling.

Fan-Type: Axial
Fan 1: 3 x 90 mm
Fan 2: --
Cooler-Type: Air cooling
Noise (Idle): 0 dB / Silent
Noise (Load): 38-43 dB

Connectivity

Up to 4 monitors can be operated with the EVGA GeForce RTX 3090 XC3 BLACK GAMING.

Max. Displays: 4
HDCP-Version: 2.3
HDMI Ports: 1x HDMI v2.1
DP Ports: 3x DP v1.4a
DVI Ports: --
VGA Ports: --
USB-C Ports: --

Featureset

With the EVGA GeForce RTX 3090 XC3 BLACK GAMING it is possible to operate a screen with a resolution of up to 7680x4320 pixels. Furthermore, the DirectX standard version 12_2 (Ultimate) is supported.

Max. resolution: 7680x4320
DirectX: 12_2 (Ultimate)
Raytracing: Yes
DLSS / FSR: Yes
LED: Addressable LED

Supported Video Codecs

This area lists the video codecs that the EVGA GeForce RTX 3090 XC3 BLACK GAMING can decode or encode in hardware in order to minimize the processor load, which leads to lower power consumption.

h264: Decode / Encode
h265 / HEVC: Decode / Encode
VP8: Decode
VP9: Decode
AV1: Decode

Dimensions

The EVGA GeForce RTX 3090 XC3 BLACK GAMING needs the space of 3 PCIe-Slots in a case. It is 285 mm long, 111 mm high and -- wide.

Length: 285 mm
Height: 111 mm
Width: --
Width (Slots): 3 PCIe-Slots
Weight: --

Additional data

The EVGA GeForce RTX 3090 XC3 BLACK GAMING was released in Q4/2020 at a price of 1,599 $. The graphics card manufactured in 8 nm is connected to the system via PCIe 4.0 x 16 lanes.

GPU Interface: PCIe 4.0 x 16
Release date: Q4/2020
Launch Price: 1,599 $
Structure size: 8 nm
Part-no: 24G-P5-3971-KR
Documents: data sheet

Rate this graphics card

Here you can rate this graphics card and help other visitors with their purchase decision. The average rating for this graphics card is currently 0 stars (0 ratings). Rate it now:

Benchmark results

3DMark Benchmark (DirectX, Raytracing)

3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.

Time Spy Extreme Graphics score

EVGA GeForce RTX 3090 XC3 BLACK GAMING EVGA GeForce RTX 3090 XC3 BLACK GAMING
24 GB GDDR6X
10193
NVIDIA GeForce RTX 3090 NVIDIA GeForce RTX 3090
Average of gpu group
10505

Port Royal (Raytracing)

EVGA GeForce RTX 3090 XC3 BLACK GAMING EVGA GeForce RTX 3090 XC3 BLACK GAMING
24 GB GDDR6X
13417
NVIDIA GeForce RTX 3090 NVIDIA GeForce RTX 3090
Average of gpu group
13828

Speed Way Graphics Score (Raytracing)

Cyberpunk 2077

Cyberpunk 2077 was developed by CD Projekt Red and is based on the development studio's own REDengine 4. Ray tracing is switched off in our benchmarks.

3840x2160 (2160p)

EVGA GeForce RTX 3090 XC3 BLACK GAMING EVGA GeForce RTX 3090 XC3 BLACK GAMING
24 GB GDDR6X
64 fps (avg)
NVIDIA GeForce RTX 3090 NVIDIA GeForce RTX 3090
Average of gpu group
66 fps (avg)

2560x1440 (1440p)

EVGA GeForce RTX 3090 XC3 BLACK GAMING EVGA GeForce RTX 3090 XC3 BLACK GAMING
24 GB GDDR6X
78 fps (avg)
NVIDIA GeForce RTX 3090 NVIDIA GeForce RTX 3090
Average of gpu group
79 fps (avg)

1920x1080 (1080p)

EVGA GeForce RTX 3090 XC3 BLACK GAMING EVGA GeForce RTX 3090 XC3 BLACK GAMING
24 GB GDDR6X
113 fps (avg)
NVIDIA GeForce RTX 3090 NVIDIA GeForce RTX 3090
Average of gpu group
114 fps (avg)

The Last of Us Part 1

The Last of Us Part One is a game released by Sony in June 2013 exclusively for the Playstation and released for the PC in early 2023. The benchmark values here were determined at high details.

3840x2160 (2160p)

EVGA GeForce RTX 3090 XC3 BLACK GAMING EVGA GeForce RTX 3090 XC3 BLACK GAMING
24 GB GDDR6X
42 fps (avg)
NVIDIA GeForce RTX 3090 NVIDIA GeForce RTX 3090
Average of gpu group
42 fps (avg)

2560x1440 (1440p)

EVGA GeForce RTX 3090 XC3 BLACK GAMING EVGA GeForce RTX 3090 XC3 BLACK GAMING
24 GB GDDR6X
80 fps (avg)
NVIDIA GeForce RTX 3090 NVIDIA GeForce RTX 3090
Average of gpu group
80 fps (avg)

1920x1080 (1080p)

EVGA GeForce RTX 3090 XC3 BLACK GAMING EVGA GeForce RTX 3090 XC3 BLACK GAMING
24 GB GDDR6X
130 fps (avg)
NVIDIA GeForce RTX 3090 NVIDIA GeForce RTX 3090
Average of gpu group
130 fps (avg)

Battlefield 5

Battlefield 5 is a visually stunning game that is ideal as a graphics card benchmark. We test the game with maximum details on Windows 10.

3840x2160 (2160p)

EVGA GeForce RTX 3090 XC3 BLACK GAMING EVGA GeForce RTX 3090 XC3 BLACK GAMING
24 GB GDDR6X
112 fps (avg)
NVIDIA GeForce RTX 3090 NVIDIA GeForce RTX 3090
Average of gpu group
116 fps (avg)

2560x1440 (1440p)

EVGA GeForce RTX 3090 XC3 BLACK GAMING EVGA GeForce RTX 3090 XC3 BLACK GAMING
24 GB GDDR6X
188 fps (avg)
NVIDIA GeForce RTX 3090 NVIDIA GeForce RTX 3090
Average of gpu group
189 fps (avg)

1920x1080 (1080p)

EVGA GeForce RTX 3090 XC3 BLACK GAMING EVGA GeForce RTX 3090 XC3 BLACK GAMING
24 GB GDDR6X
200 fps (avg)
NVIDIA GeForce RTX 3090 NVIDIA GeForce RTX 3090
Average of gpu group
199 fps (avg)

Geekbench 6 (OpenCL, Vulkan, Metal)

Geekbench 6 is a cross-platform benchmark for main processors, which also carries out 3 different graphics benchmarks and outputs them in the form of a numerical value.

Geekbench 6 - OpenCL

EVGA GeForce RTX 3090 XC3 BLACK GAMING EVGA GeForce RTX 3090 XC3 BLACK GAMING
24 GB GDDR6X
191364
NVIDIA GeForce RTX 3090 NVIDIA GeForce RTX 3090
Average of gpu group
206061

Geekbench 6 - Vulkan

EVGA GeForce RTX 3090 XC3 BLACK GAMING EVGA GeForce RTX 3090 XC3 BLACK GAMING
24 GB GDDR6X
167948
NVIDIA GeForce RTX 3090 NVIDIA GeForce RTX 3090
Average of gpu group
143201

FP32 Performance (Single-precision TFLOPS)

The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.

FP32 (TFLOPS)

More benchmarks

In order to determine the performance of a graphics card, so-called "benchmarks" are carried out. The benchmark software carries out special calculations to determine the performance of a graphics card. We use so-called theoretical or synthetic benchmarks (e.g. 3D Mark) as well as real game benchmarks. To ensure real comparability of the results, we pay attention to the correct execution of the benchmarks as well as the condition of the graphics card and the system.

We use the following benchmarks to measure the performance of a graphics card:
