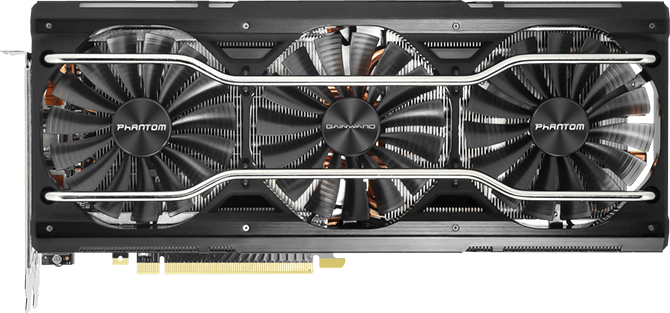

The Gainward GeForce RTX 2070 Phantom GLH has 2304 shaders and 36 execution units. The graphics card thus achieves a theoretical FP32 computing power of 8.36 TFLOPS.
- GPU Chip
- TU106 (Turing)
- Streaming Multiprocessors
- 36
- Shader
- 2304
- Render Output Units
- 64
- Texture Units
- 144
- Raytracing Cores
- 36
The Gainward GeForce RTX 2070 Phantom GLH can use 8 GB graphics memory of the type GDDR6. The graphics card thus achieves a memory bandwidth of 448 GB/s on a 256 bit wide memory interface.
- Memory Size
- 8 GB
- Memory Type
- GDDR6
- Memory Clock
- 1.750 GHz
- Memory Speed
- 14.0 Gbps
- Memory bandwidth
- 448 GB/s
- Memory Interface
- 256 bit
The base clock frequency of the Gainward GeForce RTX 2070 Phantom GLH is 1.410 GHz. A high clock frequency (even in turbo mode) can greatly increase the speed of a graphics card.
- Base Clock
- 1.410 GHz
- Boost Clock
- 1.815 GHz+12 %
- Overclocking
- Yes
The TDP (Thermal Design Power) of the Gainward GeForce RTX 2070 Phantom GLH is 215 W. The graphics card is supplied with energy via the 1 x 6-Pin, 1 x 8-Pin connector.
- TDP
- 215 W+23 %
- Tjunction max
- 89 °C
- PCIe-Power
- 1 x 6-Pin, 1 x 8-Pin
The Gainward GeForce RTX 2070 Phantom GLH has a total of 3 Axial fans to cool the graphics processor and graphics memory.
- Fan-Type
- Axial
- Fan 1
- 3 x 90 mm
- Cooler-Type
- Air cooling
- Noise (Idle)
- 0 dB / Silent
Up to 4 screens can be connected to the Gainward GeForce RTX 2070 Phantom GLH.
- Max. Displays
- 4
- HDCP
- 2.2
- HDMI
- 1x HDMI 2.0b
- DisplayPort
- 3x DP 1.4a
- USB-C
- 1
The Gainward GeForce RTX 2070 Phantom GLH has a maximum resolution of 7680x4320 pixels. The graphics card supports the DirectX 12_2 (Ultimate) standard.
- Max. resolution
- 7680x4320
- DirectX
- 12_2 (Ultimate)
- Raytracing
- Yes
- DLSS / FSR
- Yes
- LED
- No LED lighting
The video codecs accelerated in hardware by the Gainward GeForce RTX 2070 Phantom GLH reduce the processor load and ensure lower energy consumption.
- h264
- Decode / Encode
- h265 / HEVC
- Decode / Encode
- VP8
- Decode
- VP9
- Decode
- AV1
- No
The Gainward GeForce RTX 2070 Phantom GLH is 292 mm long and 130 mm high. With a width of 60 mm, the graphics card requires 3 PCIe-Slots in the case.
- Length
- 292 mm
- Height
- 130 mm
- Width
- 60 mm
- Width (Slots)
- 3 PCIe-Slots
- SFF-Ready
- No
The Gainward GeForce RTX 2070 Phantom GLH made in 12 nm was published in Q4/2018 for 499 $.
- GPU Interface
- PCIe 3.0 x 16
- Release date
- Q4/2018
- Launch Price
- 499 $ (Reference)
- Structure size
- 12 nm
- Part-no
- 426018336-4214
