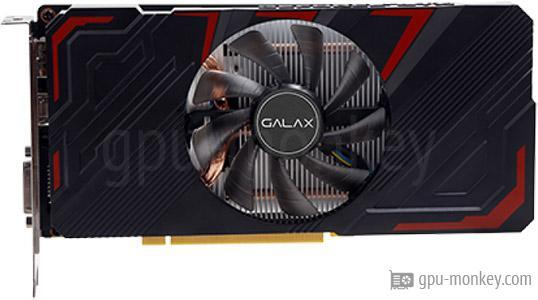

GALAX GeForce GTX 1660 Ti Prodigy
Benchmark and Specs
Last updated:
Benchmark and Specs
All technical data and various benchmarks of the GALAX GeForce GTX 1660 Ti Prodigy are listed on this page. The graphics card is based on the TU116-400-A1 (Turing) graphics chip, which is manufactured with a structure width of 12 nm. The GALAX GeForce GTX 1660 Ti Prodigy can operate up to 3 screens with a maximum resolution of up to 7680x4320 become.
GPUThe GALAX GeForce GTX 1660 Ti Prodigy has 24 execution units with 1536 shaders. This gives the graphics card a theoretical FP32 computing power of 5.53 TFLOPS. |
|
| Based on: | NVIDIA GeForce GTX 1660 Ti |
| GPU Chip: | TU116-400-A1 (Turing) |
| Streaming Multiprocessors: | 24 |
| Shader: | 1536 |
| Render Output Units: | 48 |
| Texture Units: | 96 |
| Raytracing Cores: | 0 |
MemoryThe GALAX GeForce GTX 1660 Ti Prodigy is equipped with 6 GB graphics memory of the type GDDR6. The memory clock of the graphics card is 1.500 GHz and the speed is 12 Gbps. |
|
| Memory Size: | 6 GB |
| Memory Type: | GDDR6 |
| Memory Clock: | 1.500 GHz |
| Memory Speed: | 12.0 Gbps |
| Memory bandwidth: | 288 GB/s |
| Memory Interface: | 192 bit |
Clock SpeedsThe base frequency of this graphics card is 1.500 GHz and the manufacturer specifies the maximum turbo clock as 1.800 GHz. If supported (see below), the performance can be further increased by overclocking. |
|
| Base Clock: | 1.500 GHz |
| Boost Clock: | 1.800 GHz + 2 % |
| Avg (Game) Clock: | 1.785 GHz |
| Overclocking: | Yes |
Thermal DesignThe GALAX GeForce GTX 1660 Ti Prodigy is powered by 1 x 8-Pin connectors. The TDP (Thermal Design Power) of the graphics card is 120 W. |
|
| TDP: | 120 W |
| TDP (up): | -- |
| Tjunction max: | 95 °C |
| PCIe-Power: | 1 x 8-Pin |
Cooler & FansGraphics processor and graphics memory of the GALAX GeForce GTX 1660 Ti Prodigy are cooled by a Air cooling. |
|
| Fan-Type: | Axial |
| Fan 1: | 1 x 80 mm |
| Fan 2: | -- |
| Cooler-Type: | Air cooling |
| Noise (Idle): | -- |
| Noise (Load): | -- |
ConnectivityUp to 3 monitors can be operated with the GALAX GeForce GTX 1660 Ti Prodigy. |
|
| Max. Displays: | 3 |
| HDCP-Version: | 2.2 |
| HDMI Ports: | 1x HDMI v2.0b |
| DP Ports: | 1x DP v1.4 |
| DVI Ports: | 1 |
| VGA Ports: | -- |
| USB-C Ports: | -- |
FeaturesetWith the GALAX GeForce GTX 1660 Ti Prodigy it is possible to operate a screen with a resolution of up to 7680x4320 pixels. Furthermore, the DirectX standard version 12_1 is supported. |
|
| Max. resolution: | 7680x4320 |
| DirectX: | 12_1 |
| Raytracing: | No |
| DLSS / FSR: | Yes |
| LED: | No LED lighting |
Supported Video CodecsThis area lists the video codecs that the GALAX GeForce GTX 1660 Ti Prodigy can decode or encode in hardware in order to minimize the processor load, which leads to lower power consumption. |
|
| h264: | Decode / Encode |
| h265 / HEVC: | Decode / Encode |
| VP8: | Decode |
| VP9: | Decode |
| AV1: | No |
DimensionsThe GALAX GeForce GTX 1660 Ti Prodigy needs the space of 2 PCIe-Slots in a case. It is 228 mm long, 132 mm high and 42 mm wide. |
|
| Length: | 228 mm |
| Height: | 132 mm |
| Width: | 42 mm |
| Width (Slots): | 2 PCIe-Slots |
| Weight: | -- |
Additional dataThe GALAX GeForce GTX 1660 Ti Prodigy was released in Q1/2019 at a price of 279 $ (Reference). The graphics card manufactured in 12 nm is connected to the system via PCIe 3.0 x 16 lanes. |
|
| GPU Interface: | PCIe 3.0 x 16 |
| Release date: | Q1/2019 |
| Launch Price: | 279 $ (Reference) |
| Structure size: | 12 nm |
| Part-no: | 60IRL7DS46PY |
| Documents: | data sheet |
1.500 GHz, 6 GB (120 W TDP)
Buy this graphic card at amazon!
Rate this graphics card
Benchmark results
3DMark Benchmark (DirectX, Raytracing)
3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.
Time Spy Extreme Graphics score
|
GALAX GeForce GTX 1660 Ti Prodigy
6 GB GDDR6 |
||
|
NVIDIA GeForce GTX 1660 Ti
Average of gpu group |
||
Port Royal (Raytracing)
|
|
GALAX GeForce GTX 1660 Ti Prodigy
6 GB GDDR6 |
||
|
|
NVIDIA GeForce GTX 1660 Ti
Average of gpu group |
||
Battlefield 5
Battlefield 5 is a visually stunning game that is ideal as a graphics card benchmark. We test the game with maximum details on Windows 10.
3840x2160 (2160p)
|
|
GALAX GeForce GTX 1660 Ti Prodigy
6 GB GDDR6 |
||
|
|
NVIDIA GeForce GTX 1660 Ti
Average of gpu group |
||
2560x1440 (1440p)
|
|
GALAX GeForce GTX 1660 Ti Prodigy
6 GB GDDR6 |
||
|
|
NVIDIA GeForce GTX 1660 Ti
Average of gpu group |
||
1920x1080 (1080p)
|
|
GALAX GeForce GTX 1660 Ti Prodigy
6 GB GDDR6 |
||
|
|
NVIDIA GeForce GTX 1660 Ti
Average of gpu group |
||
Geekbench 6 (OpenCL, Vulkan, Metal)
Geekbench 6 is a cross-platform benchmark for main processors, which also carries out 3 different graphics benchmarks and outputs them in the form of a numerical value.
Geekbench 6 - OpenCL
|
|
GALAX GeForce GTX 1660 Ti Prodigy
6 GB GDDR6 |
||
|
|
NVIDIA GeForce GTX 1660 Ti
Average of gpu group |
||
Geekbench 6 - Vulkan
|
|
GALAX GeForce GTX 1660 Ti Prodigy
6 GB GDDR6 |
||
|
|
NVIDIA GeForce GTX 1660 Ti
Average of gpu group |
||
FP32 Performance (Single-precision TFLOPS)
The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.
FP32 (TFLOPS)
|
|
GALAX GeForce GTX 1660 Ti Prodigy
6 GB GDDR6 |
||
More benchmarks
In order to determine the performance of a graphics card, so-called "benchmarks" are carried out. The benchmark software carries out special calculations to determine the performance of a graphics card. We use so-called theoretical or synthetic benchmarks (e.g. 3D Mark) as well as real game benchmarks. To ensure real comparability of the results, we pay attention to the correct execution of the benchmarks as well as the condition of the graphics card and the system.We use the following benchmarks to measure the performance of a graphics card:
