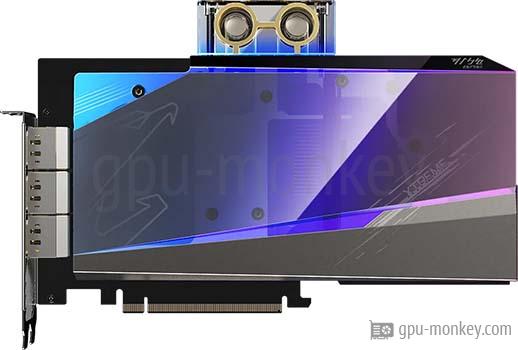

The GIGABYTE AORUS GeForce RTX 3080 XTREME WATERFORCE WB 12G has 8960 shaders and 70 execution units. The graphics card thus achieves a theoretical FP32 computing power of 32.79 TFLOPS.
- GPU Chip
- GA102 (Ampere)
- Streaming Multiprocessors
- 70
- Shader
- 8960
- Render Output Units
- 112
- Texture Units
- 280
- Raytracing Cores
- 70
The GIGABYTE AORUS GeForce RTX 3080 XTREME WATERFORCE WB 12G can use 12 GB graphics memory of the type GDDR6X. The graphics card thus achieves a memory bandwidth of 912 GB/s on a 384 bit wide memory interface.
- Memory Size
- 12 GB
- Memory Type
- GDDR6X
- Memory Clock
- 1.188 GHz
- Memory Speed
- 19.0 Gbps
- Memory bandwidth
- 912 GB/s
- Memory Interface
- 384 bit
The base clock frequency of the GIGABYTE AORUS GeForce RTX 3080 XTREME WATERFORCE WB 12G is 1.260 GHz. A high clock frequency (even in turbo mode) can greatly increase the speed of a graphics card.
- Base Clock
- 1.260 GHz
- Boost Clock
- 1.830 GHz+7 %
- Overclocking
- Yes
The TDP (Thermal Design Power) of the GIGABYTE AORUS GeForce RTX 3080 XTREME WATERFORCE WB 12G is 350 W. The graphics card is supplied with energy via the 2 x 8-Pin connector.
- TDP
- 350 W
- Tjunction max
- 93 °C
- PCIe-Power
- 2 x 8-Pin
The GIGABYTE AORUS GeForce RTX 3080 XTREME WATERFORCE WB 12G has a total of 0 -- fans to cool the graphics processor and graphics memory.
- Cooler-Type
- Water cooling
- Noise (Idle)
- 0 dB / Silent
- Noise (Load)
- 0 dB
Up to 4 screens can be connected to the GIGABYTE AORUS GeForce RTX 3080 XTREME WATERFORCE WB 12G.
- Max. Displays
- 4
- HDCP
- 2.3
- HDMI
- 3x HDMI 2.1
- DisplayPort
- 3x DP 1.4a
The GIGABYTE AORUS GeForce RTX 3080 XTREME WATERFORCE WB 12G has a maximum resolution of 7680x4320 pixels. The graphics card supports the DirectX 12_2 (Ultimate) standard.
- Max. resolution
- 7680x4320
- DirectX
- 12_2 (Ultimate)
- Raytracing
- Yes
- DLSS / FSR
- Yes
- LED
- GIGABYTE RGB Fusion
The video codecs accelerated in hardware by the GIGABYTE AORUS GeForce RTX 3080 XTREME WATERFORCE WB 12G reduce the processor load and ensure lower energy consumption.
- h264
- Decode / Encode
- h265 / HEVC
- Decode / Encode
- VP8
- Decode
- VP9
- Decode
- AV1
- Decode
The GIGABYTE AORUS GeForce RTX 3080 XTREME WATERFORCE WB 12G is 252 mm long and 163 mm high. With a width of 29 mm, the graphics card requires 2 PCIe-Slots in the case.
- Length
- 252 mm
- Height
- 163 mm
- Width
- 29 mm
- Width (Slots)
- 2 PCIe-Slots
- SFF-Ready
- No
The GIGABYTE AORUS GeForce RTX 3080 XTREME WATERFORCE WB 12G made in 8 nm was published in Q1/2022 for 699 $.
- GPU Interface
- PCIe 4.0 x 16
- Release date
- Q1/2022
- Launch Price
- 699 $ (Reference)
- Structure size
- 8 nm
- Part-no
- GV-N3080AORUSX WB-12GD
