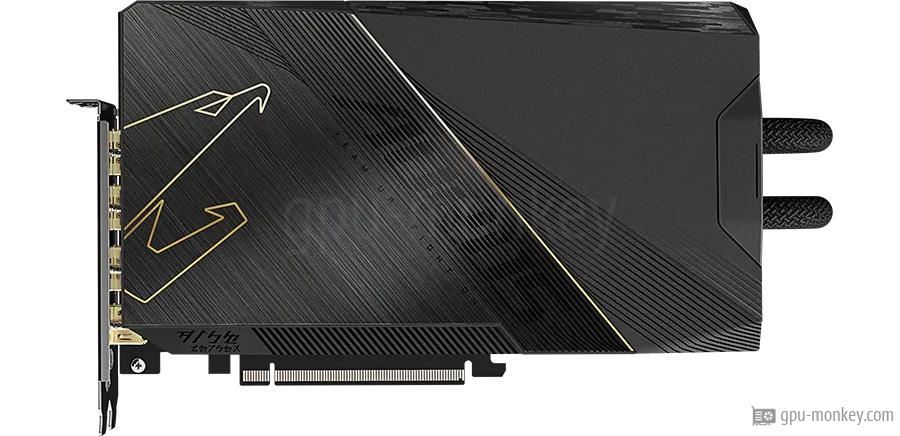

GIGABYTE AORUS GeForce RTX 4090 XTREME WATERFORCE 24G


Last updated:

Benchmark and Specs

All technical data and various benchmarks of the GIGABYTE AORUS GeForce RTX 4090 XTREME WATERFORCE 24G are listed on this page. The graphics card is based on the AD102-300-A1 (Ada Lovelace) graphics chip, which is manufactured with a structure width of 5 nm. The GIGABYTE AORUS GeForce RTX 4090 XTREME WATERFORCE 24G can operate up to 4 screens with a maximum resolution of up to 7680x4320 become.

GPU

The GIGABYTE AORUS GeForce RTX 4090 XTREME WATERFORCE 24G has 128 execution units with 16384 shaders. This gives the graphics card a theoretical FP32 computing power of 84.05 TFLOPS.

Based on: NVIDIA GeForce RTX 4090
GPU Chip: AD102-300-A1 (Ada Lovelace)
Streaming Multiprocessors: 128
Shader: 16384
Render Output Units: 176
Texture Units: 512
Raytracing Cores: 128

Memory

The GIGABYTE AORUS GeForce RTX 4090 XTREME WATERFORCE 24G is equipped with 24 GB graphics memory of the type GDDR6X. The memory clock of the graphics card is 1.313 GHz and the speed is 21 Gbps.

Memory Size: 24 GB
Memory Type: GDDR6X
Memory Clock: 1.313 GHz
Memory Speed: 21.0 Gbps
Memory bandwidth: 1008 GB/s
Memory Interface: 384 bit

Clock Speeds

The base frequency of this graphics card is 2.235 GHz and the manufacturer specifies the maximum turbo clock as 2.565 GHz. If supported (see below), the performance can be further increased by overclocking.

Base Clock: 2.235 GHz
Boost Clock: 2.565 GHzDeviation vs GPU group+ 2 %
Avg (Game) Clock:
Overclocking: Yes

Thermal Design

The GIGABYTE AORUS GeForce RTX 4090 XTREME WATERFORCE 24G is powered by 1 x 16-Pin connectors. The TDP (Thermal Design Power) of the graphics card is 450 W.

TDP: 450 W
TDP (up): --
Tjunction max: 90 °C
PCIe-Power: 1 x 16-Pin

Cooler & Fans

Graphics processor and graphics memory of the GIGABYTE AORUS GeForce RTX 4090 XTREME WATERFORCE 24G are cooled by a AIO water cooling.

Fan-Type: Axial (Radiator)
Fan 1: 3 x 120 mm
Fan 2: --
Cooler-Type: AIO water cooling
Noise (Idle): 0 dB / Silent
Noise (Load): --

Connectivity

Up to 4 monitors can be operated with the GIGABYTE AORUS GeForce RTX 4090 XTREME WATERFORCE 24G.

Max. Displays: 4
HDCP-Version: 2.3
HDMI Ports: 1x HDMI v2.1
DP Ports: 3x DP v1.4a
DVI Ports: --
VGA Ports: --
USB-C Ports: --

Featureset

With the GIGABYTE AORUS GeForce RTX 4090 XTREME WATERFORCE 24G it is possible to operate a screen with a resolution of up to 7680x4320 pixels. Furthermore, the DirectX standard version 12_2 (Ultimate) is supported.

Max. resolution: 7680x4320
DirectX: 12_2 (Ultimate)
Raytracing: Yes
DLSS / FSR: Yes
LED: GIGABYTE RGB Fusion

Supported Video Codecs

This area lists the video codecs that the GIGABYTE AORUS GeForce RTX 4090 XTREME WATERFORCE 24G can decode or encode in hardware in order to minimize the processor load, which leads to lower power consumption.

h264: Decode / Encode
h265 / HEVC: Decode / Encode
VP8: Decode
VP9: Decode
AV1: Decode

Dimensions

The GIGABYTE AORUS GeForce RTX 4090 XTREME WATERFORCE 24G needs the space of 2 PCIe-Slots in a case. It is 238 mm long, 141 mm high and 40 mm wide.

Length: 238 mm
Height: 141 mm
Width: 40 mm
Width (Slots): 2 PCIe-Slots
Weight: --

Additional data

The GIGABYTE AORUS GeForce RTX 4090 XTREME WATERFORCE 24G was released in Q4/2022 at a price of 1,599 $ (Reference). The graphics card manufactured in 5 nm is connected to the system via PCIe 4.0 x 16 lanes.

GPU Interface: PCIe 4.0 x 16
Release date: Q4/2022
Launch Price: 1,599 $ (Reference)
Structure size: 5 nm
Part-no: GV-N4090AORUSX W-24GD
Documents: data sheet

Rate this graphics card

Here you can rate this graphics card and help other visitors with their purchase decision. The average rating for this graphics card is currently 0 stars (0 ratings). Rate it now:

Benchmark results

3DMark Benchmark (DirectX, Raytracing)

3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.

Time Spy Extreme Graphics score

Port Royal (Raytracing)

Speed Way Graphics Score (Raytracing)

Cyberpunk 2077

Cyberpunk 2077 was developed by CD Projekt Red and is based on the development studio's own REDengine 4. Ray tracing is switched off in our benchmarks.

3840x2160 (2160p)

GIGABYTE AORUS GeForce RTX 4090 XTREME WATERFORCE 24G GIGABYTE AORUS GeForce RTX 4090 XTREME WATERFORCE 24G
24 GB GDDR6X
95 fps (avg)
NVIDIA GeForce RTX 4090 NVIDIA GeForce RTX 4090
Average of gpu group
94 fps (avg)

2560x1440 (1440p)

GIGABYTE AORUS GeForce RTX 4090 XTREME WATERFORCE 24G GIGABYTE AORUS GeForce RTX 4090 XTREME WATERFORCE 24G
24 GB GDDR6X
188 fps (avg)
NVIDIA GeForce RTX 4090 NVIDIA GeForce RTX 4090
Average of gpu group
185 fps (avg)

1920x1080 (1080p)

GIGABYTE AORUS GeForce RTX 4090 XTREME WATERFORCE 24G GIGABYTE AORUS GeForce RTX 4090 XTREME WATERFORCE 24G
24 GB GDDR6X
198 fps (avg)
NVIDIA GeForce RTX 4090 NVIDIA GeForce RTX 4090
Average of gpu group
195 fps (avg)

The Last of Us Part 1

The Last of Us Part One is a game released by Sony in June 2013 exclusively for the Playstation and released for the PC in early 2023. The benchmark values here were determined at high details.

3840x2160 (2160p)

GIGABYTE AORUS GeForce RTX 4090 XTREME WATERFORCE 24G GIGABYTE AORUS GeForce RTX 4090 XTREME WATERFORCE 24G
24 GB GDDR6X
81 fps (avg)
NVIDIA GeForce RTX 4090 NVIDIA GeForce RTX 4090
Average of gpu group
80 fps (avg)

2560x1440 (1440p)

GIGABYTE AORUS GeForce RTX 4090 XTREME WATERFORCE 24G GIGABYTE AORUS GeForce RTX 4090 XTREME WATERFORCE 24G
24 GB GDDR6X
145 fps (avg)
NVIDIA GeForce RTX 4090 NVIDIA GeForce RTX 4090
Average of gpu group
142 fps (avg)

1920x1080 (1080p)

GIGABYTE AORUS GeForce RTX 4090 XTREME WATERFORCE 24G GIGABYTE AORUS GeForce RTX 4090 XTREME WATERFORCE 24G
24 GB GDDR6X
187 fps (avg)
NVIDIA GeForce RTX 4090 NVIDIA GeForce RTX 4090
Average of gpu group
184 fps (avg)

Battlefield 5

Battlefield 5 is a visually stunning game that is ideal as a graphics card benchmark. We test the game with maximum details on Windows 10.

3840x2160 (2160p)

GIGABYTE AORUS GeForce RTX 4090 XTREME WATERFORCE 24G GIGABYTE AORUS GeForce RTX 4090 XTREME WATERFORCE 24G
24 GB GDDR6X
188 fps (avg)
NVIDIA GeForce RTX 4090 NVIDIA GeForce RTX 4090
Average of gpu group
186 fps (avg)

2560x1440 (1440p)

GIGABYTE AORUS GeForce RTX 4090 XTREME WATERFORCE 24G GIGABYTE AORUS GeForce RTX 4090 XTREME WATERFORCE 24G
24 GB GDDR6X
204 fps (avg)
NVIDIA GeForce RTX 4090 NVIDIA GeForce RTX 4090
Average of gpu group
203 fps (avg)

1920x1080 (1080p)

GIGABYTE AORUS GeForce RTX 4090 XTREME WATERFORCE 24G GIGABYTE AORUS GeForce RTX 4090 XTREME WATERFORCE 24G
24 GB GDDR6X
204 fps (avg)
NVIDIA GeForce RTX 4090 NVIDIA GeForce RTX 4090
Average of gpu group
213 fps (avg)

Geekbench 6 (OpenCL, Vulkan, Metal)

Geekbench 6 is a cross-platform benchmark for main processors, which also carries out 3 different graphics benchmarks and outputs them in the form of a numerical value.

Geekbench 6 - OpenCL

Geekbench 6 - Vulkan

FP32 Performance (Single-precision TFLOPS)

The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.

FP32 (TFLOPS)

More benchmarks

In order to determine the performance of a graphics card, so-called "benchmarks" are carried out. The benchmark software carries out special calculations to determine the performance of a graphics card. We use so-called theoretical or synthetic benchmarks (e.g. 3D Mark) as well as real game benchmarks. To ensure real comparability of the results, we pay attention to the correct execution of the benchmarks as well as the condition of the graphics card and the system.

We use the following benchmarks to measure the performance of a graphics card:
