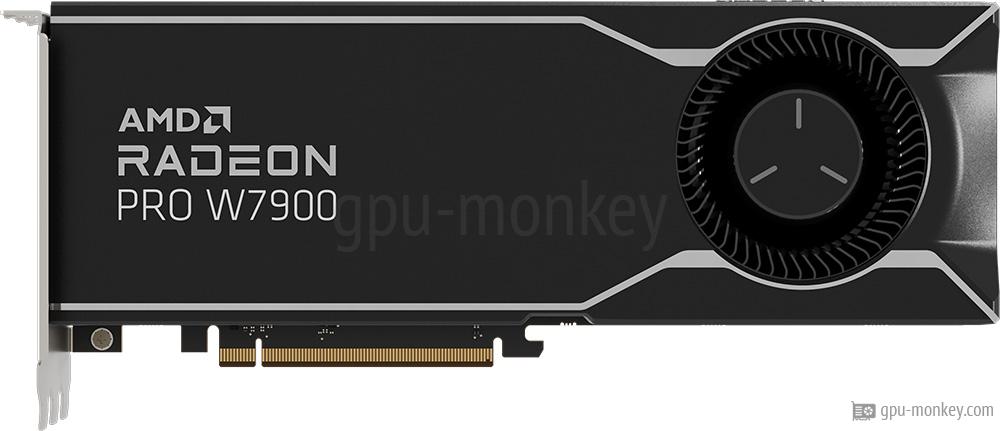

AMD Radeon Pro W7900
Benchmark and Specs


Last updated:

Benchmark and Specs

All technical data and various benchmarks of the AMD Radeon Pro W7900 are listed on this page. The graphics card is based on the Navi 31 (RDNA 3) graphics chip, which is manufactured with a structure width of 5 nm. The AMD Radeon Pro W7900 can operate up to 4 screens with a maximum resolution of up to 7680x4320 become.

GPU

The AMD Radeon Pro W7900 has 96 execution units with 6144 shaders. This gives the graphics card a theoretical FP32 computing power of 61.32 TFLOPS.

Based on: AMD Radeon Pro W7900
GPU Chip: Navi 31 (RDNA 3)
Streaming Multiprocessors: 96
Shader: 6144
Render Output Units: 192
Texture Units: 384
Raytracing Cores: 96

Memory

The AMD Radeon Pro W7900 is equipped with 48 GB graphics memory of the type GDDR6. The memory clock of the graphics card is 2.250 GHz and the speed is 18 Gbps.

Memory Size: 48 GB
Memory Type: GDDR6
Memory Clock: 2.250 GHz
Memory Speed: 18.0 Gbps
Memory bandwidth: 864 GB/s
Memory Interface: 384 bit

Clock Speeds

The base frequency of this graphics card is 1.855 GHz and the manufacturer specifies the maximum turbo clock as 2.495 GHz. If supported (see below), the performance can be further increased by overclocking.

Base Clock: 1.855 GHz
Boost Clock: 2.495 GHz
Avg (Game) Clock:
Overclocking: Yes

Thermal Design

The AMD Radeon Pro W7900 is powered by 2 x 8-Pin connectors. The TDP (Thermal Design Power) of the graphics card is 295 W.

TDP: 295 W
TDP (up): --
Tjunction max: 99 °C
PCIe-Power: 2 x 8-Pin

Cooler & Fans

Graphics processor and graphics memory of the AMD Radeon Pro W7900 are cooled by a Air cooling.

Fan-Type: Radial
Fan 1: 1 x 70 mm
Fan 2: --
Cooler-Type: Air cooling
Noise (Idle): 0 dB / Silent
Noise (Load): --

Connectivity

Up to 4 monitors can be operated with the AMD Radeon Pro W7900.

Max. Displays: 4
HDCP-Version: 2.3
HDMI Ports: --
DP Ports: 4x DP v2.1
DVI Ports: --
VGA Ports: --
USB-C Ports: --

Featureset

With the AMD Radeon Pro W7900 it is possible to operate a screen with a resolution of up to 7680x4320 pixels. Furthermore, the DirectX standard version 12_2 (Ultimate) is supported.

Max. resolution: 7680x4320
DirectX: 12_2 (Ultimate)
Raytracing: Yes
DLSS / FSR: Yes
LED: No LED lighting

Supported Video Codecs

This area lists the video codecs that the AMD Radeon Pro W7900 can decode or encode in hardware in order to minimize the processor load, which leads to lower power consumption.

h264: Decode / Encode
h265 / HEVC: Decode / Encode
VP8: Decode / Encode
VP9: Decode / Encode
AV1: Decode / Encode

Dimensions

The AMD Radeon Pro W7900 needs the space of 3 PCIe-Slots in a case. It is 280 mm long, 110 mm high and 51 mm wide.

Length: 280 mm
Height: 110 mm
Width: 51 mm
Width (Slots): 3 PCIe-Slots
Weight: --

Additional data

The AMD Radeon Pro W7900 was released in Q2/2023 at a price of 3,999 $. The graphics card manufactured in 5 nm is connected to the system via PCIe 4.0 x 16 lanes.

GPU Interface: PCIe 4.0 x 16
Release date: Q2/2023
Launch Price: 3,999 $
Structure size: 5 nm
Part-no: --
Documents: data sheet

Rate this graphics card

Here you can rate this graphics card and help other visitors with their purchase decision. The average rating for this graphics card is currently 0 stars (0 ratings). Rate it now:

Benchmark results

FP32 Performance (Single-precision TFLOPS)

The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.

FP32 (TFLOPS)

AMD Radeon Pro W7900 AMD Radeon Pro W7900
48 GB GDDR6
61.32

More benchmarks

In order to determine the performance of a graphics card, so-called "benchmarks" are carried out. The benchmark software carries out special calculations to determine the performance of a graphics card. We use so-called theoretical or synthetic benchmarks (e.g. 3D Mark) as well as real game benchmarks. To ensure real comparability of the results, we pay attention to the correct execution of the benchmarks as well as the condition of the graphics card and the system.

We use the following benchmarks to measure the performance of a graphics card:
