Here we show you benchmarks and technical data for the GIGABYTE AORUS GeForce RTX 5090 MASTER ICE. The graphics card is based on the NVIDIA GeForce RTX 5090 (Blackwell) and has 32 GB GDDR7 graphics memory with a memory bandwidth of 1792 GB/s. The GIGABYTE AORUS GeForce RTX 5090 MASTER ICE has 170 execution units with 21760 shaders.
GPU
The GIGABYTE AORUS GeForce RTX 5090 MASTER ICE has 21760 shaders and 170 execution units. The graphics card thus achieves a theoretical FP32 computing power of 115.60 TFLOPS.
The GIGABYTE AORUS GeForce RTX 5090 MASTER ICE can use 32 GB graphics memory of the type GDDR7. The graphics card thus achieves a memory bandwidth of 1792 GB/s on a 512 bit wide memory interface.
Memory Size:
32 GB
Memory Type:
GDDR7
Memory Clock:
1.750 GHz
Memory Speed:
28.0 Gbps
Memory bandwidth:
1792 GB/s
Memory Interface:
512 bit
Clock Speeds
The base clock frequency of the GIGABYTE AORUS GeForce RTX 5090 MASTER ICE is 2.017 GHz. A high clock frequency (even in turbo mode) can greatly increase the speed of a graphics card.
Base Clock:
2.017 GHz
Boost Clock:
2.655 GHz+ 10 %
Avg (Game) Clock:
Overclocking:
Yes
Thermal Design
The TDP (Thermal Design Power) of the GIGABYTE AORUS GeForce RTX 5090 MASTER ICE is --. The graphics card is supplied with energy via the 1 x 16-Pin connector.
TDP:
575 W (Reference)
TDP (up):
--
Tjunction max:
90 °C
PCIe-Power:
1 x 16-Pin
Cooler & Fans

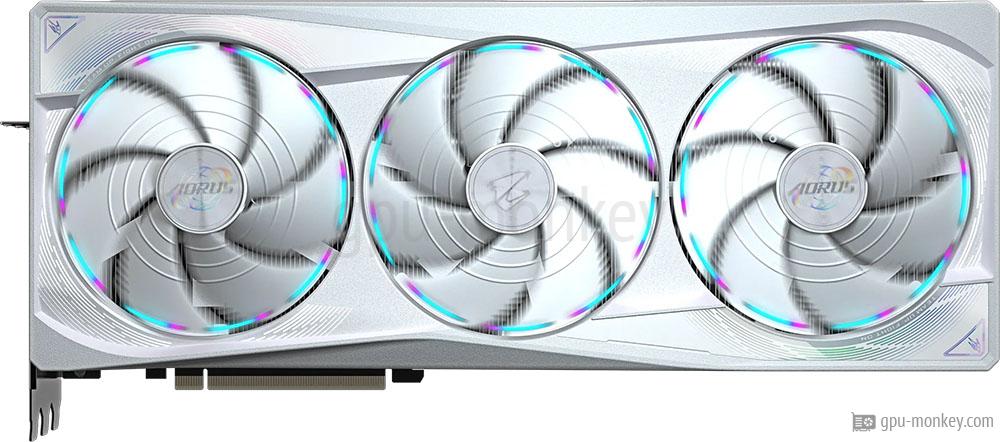

The GIGABYTE AORUS GeForce RTX 5090 MASTER ICE has a total of 3 Axial fans to cool the graphics processor and graphics memory.
Fan-Type:
Axial
Fan 1:
3 x 110 mm
Fan 2:
--
Cooler-Type:
Air cooling
Noise (Idle):
0 dB / Silent
Noise (Load):
--
Connectivity
Up to 4 screens can be connected to the GIGABYTE AORUS GeForce RTX 5090 MASTER ICE.
Max. Displays:
4
HDCP-Version:
2.3
HDMI Ports:
1x HDMI v2.1b
DP Ports:
3x DP v2.1b
DVI Ports:
--
VGA Ports:
--
USB-C Ports:
--
Featureset
The GIGABYTE AORUS GeForce RTX 5090 MASTER ICE has a maximum resolution of 7680x4320 pixels. The graphics card supports the DirectX 12_2 (Ultimate) standard.
Max. resolution:
7680x4320
DirectX:
12_2 (Ultimate)
Raytracing:
Yes
DLSS / FSR:
Yes
LED:
GIGABYTE RGB Fusion
Supported Video Codecs
The video codecs accelerated in hardware by the GIGABYTE AORUS GeForce RTX 5090 MASTER ICE reduce the processor load and ensure lower energy consumption.
h264:
Decode / Encode
h265 / HEVC:
Decode / Encode
VP8:
Decode / Encode
VP9:
Decode / Encode
AV1:
Decode / Encode
Dimensions
The GIGABYTE AORUS GeForce RTX 5090 MASTER ICE is 360 mm long and 150 mm high. With a width of 75 mm, the graphics card requires 4 PCIe-Slots in the case.
Length:
360 mm
Height:
150 mm
Width:
75 mm
Width (Slots):
4 PCIe-Slots
Weight:
--
SFF-Ready:
No
Additional data
The GIGABYTE AORUS GeForce RTX 5090 MASTER ICE made in 5 nm was published in Q1/2025 for 2,329 $ (Reference).
Here you can rate this graphics card and help other visitors with their purchase decision. The average rating for this graphics card is currently 5.0 stars (1 ratings). Rate it now:
The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.
In order to determine the performance of a graphics card, so-called "benchmarks" are carried out. The benchmark software carries out special calculations to determine the performance of a graphics card. We use so-called theoretical or synthetic benchmarks (e.g. 3D Mark) as well as real game benchmarks. To ensure real comparability of the results, we pay attention to the correct execution of the benchmarks as well as the condition of the graphics card and the system.
We use the following benchmarks to measure the performance of a graphics card:
