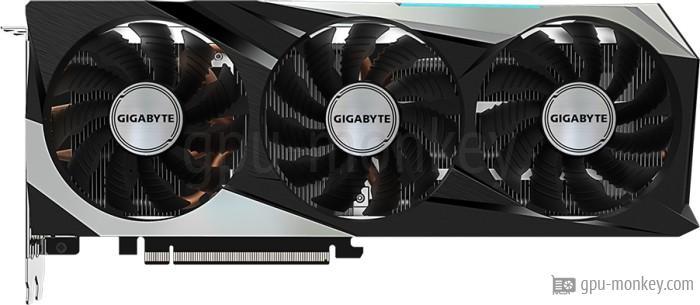

GIGABYTE Radeon RX 6800 Gaming 16G


Last updated:

Benchmark and Specs

Here we show you benchmarks and technical data for the GIGABYTE Radeon RX 6800 Gaming 16G. The graphics card is based on the AMD Radeon RX 6800 (RDNA 2) and has 16 GB GDDR6 graphics memory with a memory bandwidth of 512 GB/s. The GIGABYTE Radeon RX 6800 Gaming 16G has 60 execution units with 3840 shaders.

GPU

The GIGABYTE Radeon RX 6800 Gaming 16G has 3840 shaders and 60 execution units. The graphics card thus achieves a theoretical FP32 computing power of 16.17 TFLOPS.

Based on: AMD Radeon RX 6800
GPU Chip: Navi 21 (RDNA 2)
Streaming Multiprocessors: 60
Shader: 3840
Render Output Units: 96
Texture Units: 240
Raytracing Cores: 60

Memory

The GIGABYTE Radeon RX 6800 Gaming 16G can use 16 GB graphics memory of the type GDDR6. The graphics card thus achieves a memory bandwidth of 512 GB/s on a 256 bit wide memory interface.

Memory Size: 16 GB
Memory Type: GDDR6
Memory Clock: 2.000 GHz
Memory Speed: 16.0 Gbps
Memory bandwidth: 512 GB/s
Memory Interface: 256 bit

Clock Speeds

The base clock frequency of the GIGABYTE Radeon RX 6800 Gaming 16G is 1.775 GHz. A high clock frequency (even in turbo mode) can greatly increase the speed of a graphics card.

Base Clock: 1.775 GHzDeviation vs GPU group+ 4 %
Boost Clock: 2.105 GHz
Avg (Game) Clock: 1.815 GHz
Overclocking: Yes

Thermal Design

The TDP (Thermal Design Power) of the GIGABYTE Radeon RX 6800 Gaming 16G is 250 W. The graphics card is supplied with energy via the 2 x 8-Pin connector.

TDP: 250 W
TDP (up): 285 W
Tjunction max: 100 °C
PCIe-Power: 2 x 8-Pin

Cooler & Fans

The GIGABYTE Radeon RX 6800 Gaming 16G has a total of 3 Axial fans to cool the graphics processor and graphics memory.

Fan-Type: Axial
Fan 1: 3 x 80 mm
Fan 2: --
Cooler-Type: Air cooling
Noise (Idle): 0 dB / Silent
Noise (Load): 35-36 dB

Connectivity

Up to 4 screens can be connected to the GIGABYTE Radeon RX 6800 Gaming 16G.

Max. Displays: 4
HDCP-Version: 2.3
HDMI Ports: 2x HDMI v2.1
DP Ports: 2x DP v1.4a
DVI Ports: --
VGA Ports: --
USB-C Ports: --

Featureset

The GIGABYTE Radeon RX 6800 Gaming 16G has a maximum resolution of 7680x4320 pixels. The graphics card supports the DirectX 12_2 (Ultimate) standard.

Max. resolution: 7680x4320
DirectX: 12_2 (Ultimate)
Raytracing: Yes
DLSS / FSR: Yes
LED: GIGABYTE RGB Fusion

Supported Video Codecs

The video codecs accelerated in hardware by the GIGABYTE Radeon RX 6800 Gaming 16G reduce the processor load and ensure lower energy consumption.

h264: Decode / Encode
h265 / HEVC: Decode / Encode
VP8: Decode / Encode
VP9: Decode / Encode
AV1: Decode

Dimensions

The GIGABYTE Radeon RX 6800 Gaming 16G is 286 mm long and 112 mm high. With a width of 58 mm, the graphics card requires 3 PCIe-Slots in the case.

Length: 286 mm
Height: 112 mm
Width: 58 mm
Width (Slots): 3 PCIe-Slots
Weight: --

Additional data

The GIGABYTE Radeon RX 6800 Gaming 16G made in 7 nm was published in Q4/2020 for 579 $ (Reference).

GPU Interface: PCIe 4.0 x 16
Release date: Q4/2020
Launch Price: 579 $ (Reference)
Structure size: 7 nm
Part-no: GV-R68GAMING-16GD
Documents: data sheet

Benchmark results

3DMark Benchmark (DirectX, Raytracing)

3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.

Time Spy Extreme Graphics score

GIGABYTE Radeon RX 6800 Gaming 16G GIGABYTE Radeon RX 6800 Gaming 16G
16 GB GDDR6
7671
AMD Radeon RX 6800 AMD Radeon RX 6800
Average of gpu group
7756

Port Royal (Raytracing)

GIGABYTE Radeon RX 6800 Gaming 16G GIGABYTE Radeon RX 6800 Gaming 16G
16 GB GDDR6
7867
AMD Radeon RX 6800 AMD Radeon RX 6800
Average of gpu group
7954

Speed Way Graphics Score (Raytracing)

GIGABYTE Radeon RX 6800 Gaming 16G GIGABYTE Radeon RX 6800 Gaming 16G
16 GB GDDR6
2931
AMD Radeon RX 6800 AMD Radeon RX 6800
Average of gpu group
2963

Cyberpunk 2077

Cyberpunk 2077 was developed by CD Projekt Red and is based on the development studio's own REDengine 4. Ray tracing is switched off in our benchmarks.

3840x2160 (2160p)

GIGABYTE Radeon RX 6800 Gaming 16G GIGABYTE Radeon RX 6800 Gaming 16G
16 GB GDDR6
51 fps (avg)
AMD Radeon RX 6800 AMD Radeon RX 6800
Average of gpu group
51 fps (avg)

2560x1440 (1440p)

GIGABYTE Radeon RX 6800 Gaming 16G GIGABYTE Radeon RX 6800 Gaming 16G
16 GB GDDR6
59 fps (avg)
AMD Radeon RX 6800 AMD Radeon RX 6800
Average of gpu group
60 fps (avg)

1920x1080 (1080p)

GIGABYTE Radeon RX 6800 Gaming 16G GIGABYTE Radeon RX 6800 Gaming 16G
16 GB GDDR6
87 fps (avg)
AMD Radeon RX 6800 AMD Radeon RX 6800
Average of gpu group
87 fps (avg)

The Last of Us Part 1

The Last of Us Part One is a game released by Sony in June 2013 exclusively for the Playstation and released for the PC in early 2023. The benchmark values here were determined at high details.

3840x2160 (2160p)

GIGABYTE Radeon RX 6800 Gaming 16G GIGABYTE Radeon RX 6800 Gaming 16G
16 GB GDDR6
30 fps (avg)
AMD Radeon RX 6800 AMD Radeon RX 6800
Average of gpu group
30 fps (avg)

2560x1440 (1440p)

GIGABYTE Radeon RX 6800 Gaming 16G GIGABYTE Radeon RX 6800 Gaming 16G
16 GB GDDR6
60 fps (avg)
AMD Radeon RX 6800 AMD Radeon RX 6800
Average of gpu group
60 fps (avg)

1920x1080 (1080p)

GIGABYTE Radeon RX 6800 Gaming 16G GIGABYTE Radeon RX 6800 Gaming 16G
16 GB GDDR6
104 fps (avg)
AMD Radeon RX 6800 AMD Radeon RX 6800
Average of gpu group
104 fps (avg)

Battlefield 5

Battlefield 5 is a visually stunning game that is ideal as a graphics card benchmark. We test the game with maximum details on Windows 10.

3840x2160 (2160p)

GIGABYTE Radeon RX 6800 Gaming 16G GIGABYTE Radeon RX 6800 Gaming 16G
16 GB GDDR6
91 fps (avg)
AMD Radeon RX 6800 AMD Radeon RX 6800
Average of gpu group
91 fps (avg)

2560x1440 (1440p)

GIGABYTE Radeon RX 6800 Gaming 16G GIGABYTE Radeon RX 6800 Gaming 16G
16 GB GDDR6
178 fps (avg)
AMD Radeon RX 6800 AMD Radeon RX 6800
Average of gpu group
178 fps (avg)

1920x1080 (1080p)

GIGABYTE Radeon RX 6800 Gaming 16G GIGABYTE Radeon RX 6800 Gaming 16G
16 GB GDDR6
195 fps (avg)
AMD Radeon RX 6800 AMD Radeon RX 6800
Average of gpu group
194 fps (avg)

Geekbench 6 (OpenCL, Vulkan, Metal)

Geekbench 6 is a cross-platform benchmark for main processors, which also carries out 3 different graphics benchmarks and outputs them in the form of a numerical value.

Geekbench 6 - OpenCL

GIGABYTE Radeon RX 6800 Gaming 16G GIGABYTE Radeon RX 6800 Gaming 16G
16 GB GDDR6
126364
AMD Radeon RX 6800 AMD Radeon RX 6800
Average of gpu group
129992

Geekbench 6 - Vulkan

GIGABYTE Radeon RX 6800 Gaming 16G GIGABYTE Radeon RX 6800 Gaming 16G
16 GB GDDR6
128479
AMD Radeon RX 6800 AMD Radeon RX 6800
Average of gpu group
100719

Geekbench 6 - Metal

GIGABYTE Radeon RX 6800 Gaming 16G GIGABYTE Radeon RX 6800 Gaming 16G
16 GB GDDR6
165447
AMD Radeon RX 6800 AMD Radeon RX 6800
Average of gpu group
137332

FP32 Performance (Single-precision TFLOPS)

The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.

FP32 (TFLOPS)

More benchmarks

In order to determine the performance of a graphics card, so-called "benchmarks" are carried out. The benchmark software carries out special calculations to determine the performance of a graphics card. We use so-called theoretical or synthetic benchmarks (e.g. 3D Mark) as well as real game benchmarks. To ensure real comparability of the results, we pay attention to the correct execution of the benchmarks as well as the condition of the graphics card and the system.

We use the following benchmarks to measure the performance of a graphics card:
