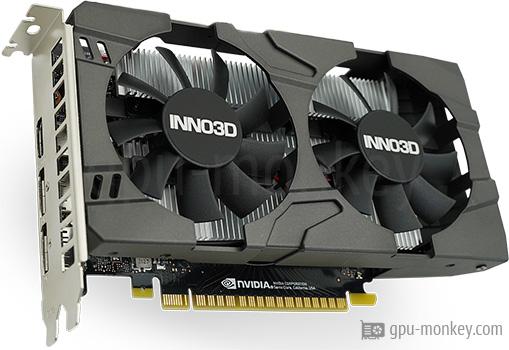

INNO3D GeForce GTX 1630 Twin X2 OC
Benchmark and Specs
Last updated:
Benchmark and Specs
Here you will find all technical data as well as various benchmarks of the INNO3D GeForce GTX 1630 Twin X2 OC. Up to 3 screens with a maximum resolution of up to 7680x4320 can be operated with this graphics card. The maximum turbo clock of the INNO3D GeForce GTX 1630 Twin X2 OC is 1.800 GHz, so the graphics card achieves an FP32 computing power of 1.85 TFLOPS.
GPUThe INNO3D GeForce GTX 1630 Twin X2 OC is equipped with 8 execution and 512 shader units. With single precision, a theoretical FP32 computing power of 1.85 TFLOPS is achieved. |
|
| Based on: | NVIDIA GeForce GTX 1630 |
| GPU Chip: | TU117-150 (Turing) |
| Streaming Multiprocessors: | 8 |
| Shader: | 512 |
| Render Output Units: | 16 |
| Texture Units: | 32 |
| Raytracing Cores: | 0 |
MemoryThe INNO3D GeForce GTX 1630 Twin X2 OC has a 64 bit wide memory interface, with which a memory bandwidth of 96 GB/s is achieved. In total, 4 GB GDDR6 graphics memory is available for the graphics card. |
|
| Memory Size: | 4 GB |
| Memory Type: | GDDR6 |
| Memory Clock: | 1.500 GHz |
| Memory Speed: | 12.0 Gbps |
| Memory bandwidth: | 96 GB/s |
| Memory Interface: | 64 bit |
Clock SpeedsThe manufacturer specifies the memory clock of the INNO3D GeForce GTX 1630 Twin X2 OC with 1.740 GHz (base clock) or with 1.800 GHz (turbo clock). If overclocking is supported (see below), the clock rate can be increased even further. |
|
| Base Clock: | 1.740 GHz |
| Boost Clock: | 1.800 GHz + 1 % |
| Avg (Game) Clock: | |
| Overclocking: | Yes |
Thermal DesignThe INNO3D GeForce GTX 1630 Twin X2 OC has plugs, which supply the graphics card with energy. The maximum operating temperature of the card is 90 °C. |
|
| TDP: | 75 W |
| TDP (up): | -- |
| Tjunction max: | 90 °C |
| PCIe-Power: | |
Cooler & FansThe INNO3D GeForce GTX 1630 Twin X2 OC is equipped with 2 Axial main fans, which are used to cool the graphics processor and graphics memory. |
|
| Fan-Type: | Axial |
| Fan 1: | 2 x 80 mm |
| Fan 2: | -- |
| Cooler-Type: | Air cooling |
| Noise (Idle): | -- |
| Noise (Load): | -- |
ConnectivityUp to 3 screens can be connected to the INNO3D GeForce GTX 1630 Twin X2 OC, whereby the backward-compatible HDCP copy protection is supported in the 2.3 version. |
|
| Max. Displays: | 3 |
| HDCP-Version: | 2.3 |
| HDMI Ports: | 1x HDMI v2.0b |
| DP Ports: | 2x DP v1.4a |
| DVI Ports: | -- |
| VGA Ports: | -- |
| USB-C Ports: | -- |
FeaturesetThe INNO3D GeForce GTX 1630 Twin X2 OC supports a maximum resolution of 7680x4320 pixels and the DirectX standard version 12_1. |
|
| Max. resolution: | 7680x4320 |
| DirectX: | 12_1 |
| Raytracing: | No |
| DLSS / FSR: | Yes |
| LED: | No LED lighting |
Supported Video CodecsHere is a list of which video codecs can be decoded / encoded by the INNO3D GeForce GTX 1630 Twin X2 OC in hardware in order to minimize the processor load. |
|
| h264: | Decode / Encode |
| h265 / HEVC: | Decode / Encode |
| VP8: | Decode |
| VP9: | Decode |
| AV1: | No |
DimensionsThe dimensions of the INNO3D GeForce GTX 1630 Twin X2 OC are 196 mm in length, 113 mm in height and -- in width. Thus 2 PCIe-Slots are needed in a case. |
|
| Length: | 196 mm |
| Height: | 113 mm |
| Width: | -- |
| Width (Slots): | 2 PCIe-Slots |
| Weight: | -- |
Additional dataThe INNO3D GeForce GTX 1630 Twin X2 OC is manufactured in a structure width of 12 nm and has a PCIe 3.0 x 8 lanes interface. The graphics card was released in Q2/2022. |
|
| GPU Interface: | PCIe 3.0 x 8 |
| Release date: | Q2/2022 |
| Launch Price: | 169 $ (Reference) |
| Structure size: | 12 nm |
| Part-no: | N16302-04D6X-1177VA25 |
| Documents: | data sheet |
1.740 GHz, 4 GB (75 W TDP)
Buy this graphic card at amazon!
Rate this graphics card
Benchmark results
3DMark Benchmark (DirectX, Raytracing)
3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.
Time Spy Extreme Graphics score
|
INNO3D GeForce GTX 1630 Twin X2 OC
4 GB GDDR6 |
||
|
NVIDIA GeForce GTX 1630
Average of gpu group |
||
Geekbench 6 (OpenCL, Vulkan, Metal)
Geekbench 6 is a cross-platform benchmark for main processors, which also carries out 3 different graphics benchmarks and outputs them in the form of a numerical value.
Geekbench 6 - OpenCL
|
|
INNO3D GeForce GTX 1630 Twin X2 OC
4 GB GDDR6 |
||
|
|
NVIDIA GeForce GTX 1630
Average of gpu group |
||
Geekbench 6 - Vulkan
|
|
INNO3D GeForce GTX 1630 Twin X2 OC
4 GB GDDR6 |
||
|
|
NVIDIA GeForce GTX 1630
Average of gpu group |
||
FP32 Performance (Single-precision TFLOPS)
The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.
FP32 (TFLOPS)
|
|
INNO3D GeForce GTX 1630 Twin X2 OC
4 GB GDDR6 |
||
More benchmarks
In order to determine the performance of a graphics card, so-called "benchmarks" are carried out. The benchmark software carries out special calculations to determine the performance of a graphics card. We use so-called theoretical or synthetic benchmarks (e.g. 3D Mark) as well as real game benchmarks. To ensure real comparability of the results, we pay attention to the correct execution of the benchmarks as well as the condition of the graphics card and the system.We use the following benchmarks to measure the performance of a graphics card:
