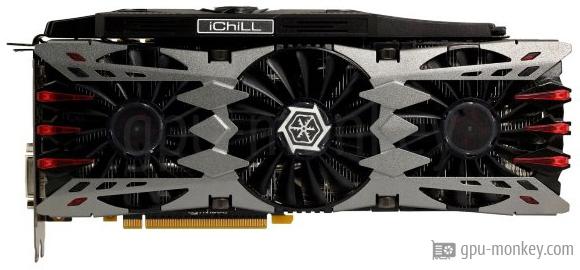

INNO3D GeForce GTX 980 iCHILL HerculeZ X4 Air Boss DHS
Benchmark and Specs
Last updated:
Benchmark and Specs
Here you will find all technical data as well as various benchmarks of the INNO3D GeForce GTX 980 iCHILL HerculeZ X4 Air Boss DHS. Up to 4 screens with a maximum resolution of up to 4096x2160 can be operated with this graphics card. The maximum turbo clock of the INNO3D GeForce GTX 980 iCHILL HerculeZ X4 Air Boss DHS is 1.418 GHz, so the graphics card achieves an FP32 computing power of 5.81 TFLOPS.
GPUThe INNO3D GeForce GTX 980 iCHILL HerculeZ X4 Air Boss DHS is equipped with 16 execution and 2048 shader units. With single precision, a theoretical FP32 computing power of 5.81 TFLOPS is achieved. |
|
| Based on: | NVIDIA GeForce GTX 980 |
| GPU Chip: | GM204-400-A1 (Maxwell 2.0) |
| Streaming Multiprocessors: | 16 |
| Shader: | 2048 |
| Render Output Units: | 64 |
| Texture Units: | 128 |
| Raytracing Cores: | 0 |
MemoryThe INNO3D GeForce GTX 980 iCHILL HerculeZ X4 Air Boss DHS has a 256 bit wide memory interface, with which a memory bandwidth of 233 GB/s is achieved. In total, 4 GB GDDR5 graphics memory is available for the graphics card. |
|
| Memory Size: | 4 GB |
| Memory Type: | GDDR5 |
| Memory Clock: | 1.820 GHz |
| Memory Speed: | 7.3 Gbps |
| Memory bandwidth: | 233 GB/s |
| Memory Interface: | 256 bit |
Clock SpeedsThe manufacturer specifies the memory clock of the INNO3D GeForce GTX 980 iCHILL HerculeZ X4 Air Boss DHS with 1.304 GHz (base clock) or with 1.418 GHz (turbo clock). If overclocking is supported (see below), the clock rate can be increased even further. |
|
| Base Clock: | 1.304 GHz + 16 % |
| Boost Clock: | 1.418 GHz+ 17 % |
| Avg (Game) Clock: | |
| Overclocking: | Yes |
Thermal DesignThe INNO3D GeForce GTX 980 iCHILL HerculeZ X4 Air Boss DHS has 1 x 6-Pin, 1 x 8-Pin plugs, which supply the graphics card with energy. The maximum operating temperature of the card is 98 °C. |
|
| TDP: | 165 W |
| TDP (up): | -- |
| Tjunction max: | 98 °C |
| PCIe-Power: | 1 x 6-Pin, 1 x 8-Pin |
Cooler & FansThe INNO3D GeForce GTX 980 iCHILL HerculeZ X4 Air Boss DHS is equipped with 4 Axial main fans, which are used to cool the graphics processor and graphics memory. |
|
| Fan-Type: | Axial |
| Fan 1: | 3 x 90 mm |
| Fan 2: | 1 x 45 mm |
| Cooler-Type: | Air cooling |
| Noise (Idle): | 0 dB / Silent |
| Noise (Load): | -- |
ConnectivityUp to 4 screens can be connected to the INNO3D GeForce GTX 980 iCHILL HerculeZ X4 Air Boss DHS, whereby the backward-compatible HDCP copy protection is supported in the 2.2 version. |
|
| Max. Displays: | 4 |
| HDCP-Version: | 2.2 |
| HDMI Ports: | 1x HDMI v2.0 |
| DP Ports: | 3x DP v1.2 |
| DVI Ports: | 1 |
| VGA Ports: | -- |
| USB-C Ports: | -- |
FeaturesetThe INNO3D GeForce GTX 980 iCHILL HerculeZ X4 Air Boss DHS supports a maximum resolution of 4096x2160 pixels and the DirectX standard version 12_1. |
|
| Max. resolution: | 4096x2160 |
| DirectX: | 12_1 |
| Raytracing: | No |
| DLSS / FSR: | No |
| LED: | Addressable LED |
Supported Video CodecsHere is a list of which video codecs can be decoded / encoded by the INNO3D GeForce GTX 980 iCHILL HerculeZ X4 Air Boss DHS in hardware in order to minimize the processor load. |
|
| h264: | Decode / Encode |
| h265 / HEVC: | No |
| VP8: | Decode |
| VP9: | No |
| AV1: | No |
DimensionsThe dimensions of the INNO3D GeForce GTX 980 iCHILL HerculeZ X4 Air Boss DHS are 300 mm in length, 115 mm in height and -- in width. Thus 2 PCIe-Slots are needed in a case. |
|
| Length: | 300 mm |
| Height: | 115 mm |
| Width: | -- |
| Width (Slots): | 2 PCIe-Slots |
| Weight: | -- |
Additional dataThe INNO3D GeForce GTX 980 iCHILL HerculeZ X4 Air Boss DHS is manufactured in a structure width of 28 nm and has a PCIe 3 x 16 lanes interface. The graphics card was released in Q1/2015. |
|
| GPU Interface: | PCIe 3 x 16 |
| Release date: | Q1/2015 |
| Launch Price: | 599 $ |
| Structure size: | 28 nm |
| Part-no: | C98X-1SDN-M5DNX |
| Documents: | -- |
1.304 GHz, 4 GB (165 W TDP)
Buy this graphic card at amazon!
Rate this graphics card
Benchmark results
3DMark Benchmark (DirectX, Raytracing)
3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.
Time Spy Extreme Graphics score
|
INNO3D GeForce GTX 980 iCHILL HerculeZ X4 Air Boss DHS
4 GB GDDR5 |
||
|
NVIDIA GeForce GTX 980
Average of gpu group |
||
Geekbench 6 (OpenCL, Vulkan, Metal)
Geekbench 6 is a cross-platform benchmark for main processors, which also carries out 3 different graphics benchmarks and outputs them in the form of a numerical value.
Geekbench 6 - OpenCL
|
|
INNO3D GeForce GTX 980 iCHILL HerculeZ X4 Air Boss DHS
4 GB GDDR5 |
||
|
|
NVIDIA GeForce GTX 980
Average of gpu group |
||
Geekbench 6 - Vulkan
|
|
INNO3D GeForce GTX 980 iCHILL HerculeZ X4 Air Boss DHS
4 GB GDDR5 |
||
|
|
NVIDIA GeForce GTX 980
Average of gpu group |
||
FP32 Performance (Single-precision TFLOPS)
The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.
FP32 (TFLOPS)
