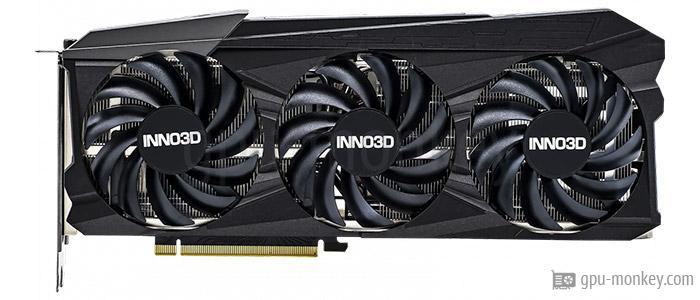

INNO3D GeForce RTX 3090 GAMING X3


Last updated:

Benchmark and Specs

Here we show you benchmarks and technical data for the INNO3D GeForce RTX 3090 GAMING X3. The graphics card is based on the NVIDIA GeForce RTX 3090 (Ampere) and has 24 GB GDDR6X graphics memory with a memory bandwidth of 936 GB/s. The INNO3D GeForce RTX 3090 GAMING X3 has 82 execution units with 10496 shaders.

GPU

The INNO3D GeForce RTX 3090 GAMING X3 has 10496 shaders and 82 execution units. The graphics card thus achieves a theoretical FP32 computing power of 35.58 TFLOPS.

Based on: NVIDIA GeForce RTX 3090
GPU Chip: GA102-300-A1 (Ampere)
Streaming Multiprocessors: 82
Shader: 10496
Render Output Units: 112
Texture Units: 328
Raytracing Cores: 82

Memory

The INNO3D GeForce RTX 3090 GAMING X3 can use 24 GB graphics memory of the type GDDR6X. The graphics card thus achieves a memory bandwidth of 936 GB/s on a 384 bit wide memory interface.

Memory Size: 24 GB
Memory Type: GDDR6X
Memory Clock: 1.219 GHz
Memory Speed: 19.5 Gbps
Memory bandwidth: 936 GB/s
Memory Interface: 384 bit

Clock Speeds

The base clock frequency of the INNO3D GeForce RTX 3090 GAMING X3 is 1.395 GHz. A high clock frequency (even in turbo mode) can greatly increase the speed of a graphics card.

Base Clock: 1.395 GHz
Boost Clock: 1.695 GHz
Avg (Game) Clock:
Overclocking: Yes

Thermal Design

The TDP (Thermal Design Power) of the INNO3D GeForce RTX 3090 GAMING X3 is 370 W. The graphics card is supplied with energy via the 2 x 8-Pin connector.

TDP: 370 WDeviation vs GPU group+ 6 %
TDP (up): --
Tjunction max: 93 °C
PCIe-Power: 2 x 8-Pin

Cooler & Fans

The INNO3D GeForce RTX 3090 GAMING X3 has a total of 3 Axial fans to cool the graphics processor and graphics memory.

Fan-Type: Axial
Fan 1: 3 x 90 mm
Fan 2: --
Cooler-Type: Air cooling
Noise (Idle): 0 dB / Silent
Noise (Load): --

Connectivity

Up to 4 screens can be connected to the INNO3D GeForce RTX 3090 GAMING X3.

Max. Displays: 4
HDCP-Version: 2.3
HDMI Ports: 1x HDMI v2.1
DP Ports: 3x DP v1.4a
DVI Ports: --
VGA Ports: --
USB-C Ports: --

Featureset

The INNO3D GeForce RTX 3090 GAMING X3 has a maximum resolution of 7680x4320 pixels. The graphics card supports the DirectX 12_2 (Ultimate) standard.

Max. resolution: 7680x4320
DirectX: 12_2 (Ultimate)
Raytracing: Yes
DLSS / FSR: Yes
LED: ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light

Supported Video Codecs

The video codecs accelerated in hardware by the INNO3D GeForce RTX 3090 GAMING X3 reduce the processor load and ensure lower energy consumption.

h264: Decode / Encode
h265 / HEVC: Decode / Encode
VP8: Decode
VP9: Decode
AV1: Decode

Dimensions

The INNO3D GeForce RTX 3090 GAMING X3 is 300 mm long and 135 mm high. With a width of --, the graphics card requires 3 PCIe-Slots in the case.

Length: 300 mm
Height: 135 mm
Width: --
Width (Slots): 3 PCIe-Slots
Weight: --

Additional data

The INNO3D GeForce RTX 3090 GAMING X3 made in 8 nm was published in Q4/2020 for 1,499 $ (Reference).

GPU Interface: PCIe 4.0 x 16
Release date: Q4/2020
Launch Price: 1,499 $ (Reference)
Structure size: 8 nm
Part-no: N30903-246X-1880VA37N
Documents: data sheet

Rate this graphics card

Here you can rate this graphics card and help other visitors with their purchase decision. The average rating for this graphics card is currently 0 stars (0 ratings). Rate it now:

Benchmark results

3DMark Benchmark (DirectX, Raytracing)

3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.

Time Spy Extreme Graphics score

INNO3D GeForce RTX 3090 GAMING X3 INNO3D GeForce RTX 3090 GAMING X3
24 GB GDDR6X
10193
NVIDIA GeForce RTX 3090 NVIDIA GeForce RTX 3090
Average of gpu group
10505

Port Royal (Raytracing)

INNO3D GeForce RTX 3090 GAMING X3 INNO3D GeForce RTX 3090 GAMING X3
24 GB GDDR6X
13417
NVIDIA GeForce RTX 3090 NVIDIA GeForce RTX 3090
Average of gpu group
13828

Speed Way Graphics Score (Raytracing)

INNO3D GeForce RTX 3090 GAMING X3 INNO3D GeForce RTX 3090 GAMING X3
24 GB GDDR6X
5416
NVIDIA GeForce RTX 3090 NVIDIA GeForce RTX 3090
Average of gpu group
5582

Cyberpunk 2077

Cyberpunk 2077 was developed by CD Projekt Red and is based on the development studio's own REDengine 4. Ray tracing is switched off in our benchmarks.

3840x2160 (2160p)

INNO3D GeForce RTX 3090 GAMING X3 INNO3D GeForce RTX 3090 GAMING X3
24 GB GDDR6X
64 fps (avg)
NVIDIA GeForce RTX 3090 NVIDIA GeForce RTX 3090
Average of gpu group
66 fps (avg)

2560x1440 (1440p)

INNO3D GeForce RTX 3090 GAMING X3 INNO3D GeForce RTX 3090 GAMING X3
24 GB GDDR6X
78 fps (avg)
NVIDIA GeForce RTX 3090 NVIDIA GeForce RTX 3090
Average of gpu group
79 fps (avg)

1920x1080 (1080p)

INNO3D GeForce RTX 3090 GAMING X3 INNO3D GeForce RTX 3090 GAMING X3
24 GB GDDR6X
113 fps (avg)
NVIDIA GeForce RTX 3090 NVIDIA GeForce RTX 3090
Average of gpu group
114 fps (avg)

The Last of Us Part 1

The Last of Us Part One is a game released by Sony in June 2013 exclusively for the Playstation and released for the PC in early 2023. The benchmark values here were determined at high details.

3840x2160 (2160p)

INNO3D GeForce RTX 3090 GAMING X3 INNO3D GeForce RTX 3090 GAMING X3
24 GB GDDR6X
42 fps (avg)
NVIDIA GeForce RTX 3090 NVIDIA GeForce RTX 3090
Average of gpu group
42 fps (avg)

2560x1440 (1440p)

INNO3D GeForce RTX 3090 GAMING X3 INNO3D GeForce RTX 3090 GAMING X3
24 GB GDDR6X
80 fps (avg)
NVIDIA GeForce RTX 3090 NVIDIA GeForce RTX 3090
Average of gpu group
80 fps (avg)

1920x1080 (1080p)

INNO3D GeForce RTX 3090 GAMING X3 INNO3D GeForce RTX 3090 GAMING X3
24 GB GDDR6X
130 fps (avg)
NVIDIA GeForce RTX 3090 NVIDIA GeForce RTX 3090
Average of gpu group
130 fps (avg)

Battlefield 5

Battlefield 5 is a visually stunning game that is ideal as a graphics card benchmark. We test the game with maximum details on Windows 10.

3840x2160 (2160p)

INNO3D GeForce RTX 3090 GAMING X3 INNO3D GeForce RTX 3090 GAMING X3
24 GB GDDR6X
112 fps (avg)
NVIDIA GeForce RTX 3090 NVIDIA GeForce RTX 3090
Average of gpu group
116 fps (avg)

2560x1440 (1440p)

INNO3D GeForce RTX 3090 GAMING X3 INNO3D GeForce RTX 3090 GAMING X3
24 GB GDDR6X
188 fps (avg)
NVIDIA GeForce RTX 3090 NVIDIA GeForce RTX 3090
Average of gpu group
189 fps (avg)

1920x1080 (1080p)

INNO3D GeForce RTX 3090 GAMING X3 INNO3D GeForce RTX 3090 GAMING X3
24 GB GDDR6X
200 fps (avg)
NVIDIA GeForce RTX 3090 NVIDIA GeForce RTX 3090
Average of gpu group
199 fps (avg)

Geekbench 6 (OpenCL, Vulkan, Metal)

Geekbench 6 is a cross-platform benchmark for main processors, which also carries out 3 different graphics benchmarks and outputs them in the form of a numerical value.

Geekbench 6 - OpenCL

INNO3D GeForce RTX 3090 GAMING X3 INNO3D GeForce RTX 3090 GAMING X3
24 GB GDDR6X
191364
NVIDIA GeForce RTX 3090 NVIDIA GeForce RTX 3090
Average of gpu group
206061

Geekbench 6 - Vulkan

INNO3D GeForce RTX 3090 GAMING X3 INNO3D GeForce RTX 3090 GAMING X3
24 GB GDDR6X
167948
NVIDIA GeForce RTX 3090 NVIDIA GeForce RTX 3090
Average of gpu group
143201

FP32 Performance (Single-precision TFLOPS)

The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.

FP32 (TFLOPS)

More benchmarks

In order to determine the performance of a graphics card, so-called "benchmarks" are carried out. The benchmark software carries out special calculations to determine the performance of a graphics card. We use so-called theoretical or synthetic benchmarks (e.g. 3D Mark) as well as real game benchmarks. To ensure real comparability of the results, we pay attention to the correct execution of the benchmarks as well as the condition of the graphics card and the system.

We use the following benchmarks to measure the performance of a graphics card:
