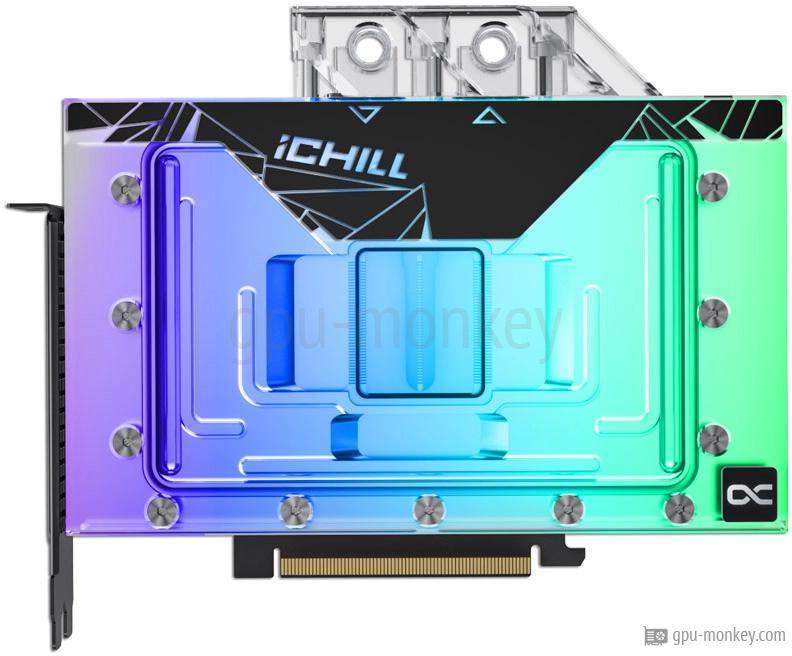

GPUThe INNO3D GeForce RTX 4080 iCHILL Frostbite is equipped with 76 execution and 9728 shader units. With single precision, a theoretical FP32 computing power of 49.91 TFLOPS is achieved. |
|
Based on: | NVIDIA GeForce RTX 4080 |
GPU Chip: | AD103-300-A1 (Ada Lovelace) |
Streaming Multiprocessors: | 76 |
Shader: | 9728 |
Render Output Units: | 112 |
Texture Units: | 304 |
Raytracing Cores: | 76 |
MemoryThe INNO3D GeForce RTX 4080 iCHILL Frostbite has a 256 bit wide memory interface, with which a memory bandwidth of 717 GB/s is achieved. In total, 16 GB GDDR6X graphics memory is available for the graphics card. |
|
Memory Size: | 16 GB |
Memory Type: | GDDR6X |
Memory Clock: | 1.400 GHz |
Memory Speed: | 22.4 Gbps |
Memory bandwidth: | 717 GB/s |
Memory Interface: | 256 bit |
Clock SpeedsThe manufacturer specifies the memory clock of the INNO3D GeForce RTX 4080 iCHILL Frostbite with 2.205 GHz (base clock) or with 2.565 GHz (turbo clock). If overclocking is supported (see below), the clock rate can be increased even further. |
|
Base Clock: | 2.205 GHz |
Boost Clock: | 2.565 GHz+ 2 % |
Avg (Game) Clock: | |
Overclocking: | Yes |
Thermal DesignThe INNO3D GeForce RTX 4080 iCHILL Frostbite has 1 x 16-Pin plugs, which supply the graphics card with energy. The maximum operating temperature of the card is 90 °C. |
|
TDP: | 320 W (Reference) |
TDP (up): | -- |
Tjunction max: | 90 °C |
PCIe-Power: | 1 x 16-Pin |
Cooler & FansThe INNO3D GeForce RTX 4080 iCHILL Frostbite is equipped with 0 -- main fans, which are used to cool the graphics processor and graphics memory. |
|
Fan-Type: | -- |
Fan 1: | -- |
Fan 2: | -- |
Cooler-Type: | Water cooling |
Noise (Idle): | 0 dB / Silent |
Noise (Load): | 0 dB |
ConnectivityUp to 4 screens can be connected to the INNO3D GeForce RTX 4080 iCHILL Frostbite, whereby the backward-compatible HDCP copy protection is supported in the 2.3 version. |
|
Max. Displays: | 4 |
HDCP-Version: | 2.3 |
HDMI Ports: | 1x HDMI v2.1 |
DP Ports: | 3x DP v1.4a |
DVI Ports: | -- |
VGA Ports: | -- |
USB-C Ports: | -- |
FeaturesetThe INNO3D GeForce RTX 4080 iCHILL Frostbite supports a maximum resolution of 7680x4320 pixels and the DirectX standard version 12_2 (Ultimate). |
|
Max. resolution: | 7680x4320 |
DirectX: | 12_2 (Ultimate) |
Raytracing: | Yes |
DLSS / FSR: | Yes |
LED: | Addressable LED |
Supported Video CodecsHere is a list of which video codecs can be decoded / encoded by the INNO3D GeForce RTX 4080 iCHILL Frostbite in hardware in order to minimize the processor load. |
|
h264: | Decode / Encode |
h265 / HEVC: | Decode / Encode |
VP8: | Decode |
VP9: | Decode |
AV1: | Decode |
DimensionsThe dimensions of the INNO3D GeForce RTX 4080 iCHILL Frostbite are 200 mm in length, 159 mm in height and 37 mm in width. Thus 2 PCIe-Slots are needed in a case. |
|
Length: | 200 mm |
Height: | 159 mm |
Width: | 37 mm |
Width (Slots): | 2 PCIe-Slots |
Weight: | -- |
Additional dataThe INNO3D GeForce RTX 4080 iCHILL Frostbite is manufactured in a structure width of 5 nm and has a PCIe 4.0 x 16 lanes interface. The graphics card was released in Q4/2022. |
|
GPU Interface: | PCIe 4.0 x 16 |
Release date: | Q4/2022 |
Launch Price: | 1,199 $ (Reference) |
Structure size: | 5 nm |
Part-no: | C4080-166XX-1870FB |
Documents: | data sheet |
