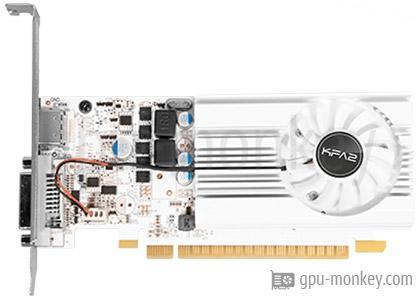

KFA2 GeForce GT 1030 EXOC White
Benchmark and Specs
Last updated:
Benchmark and Specs
Here you will find all technical data as well as various benchmarks of the KFA2 GeForce GT 1030 EXOC White. Up to 2 screens with a maximum resolution of up to 7680x4320 can be operated with this graphics card. The maximum turbo clock of the KFA2 GeForce GT 1030 EXOC White is 1.506 GHz, so the graphics card achieves an FP32 computing power of 1.16 TFLOPS.
GPUThe KFA2 GeForce GT 1030 EXOC White is equipped with 3 execution and 384 shader units. With single precision, a theoretical FP32 computing power of 1.16 TFLOPS is achieved. |
|
| Based on: | NVIDIA GeForce GT 1030 |
| GPU Chip: | GP108-300-A1 (Pascal) |
| Streaming Multiprocessors: | 3 |
| Shader: | 384 |
| Render Output Units: | 16 |
| Texture Units: | 24 |
| Raytracing Cores: | 0 |
MemoryThe KFA2 GeForce GT 1030 EXOC White has a 64 bit wide memory interface, with which a memory bandwidth of 48 GB/s is achieved. In total, 2 GB GDDR5 graphics memory is available for the graphics card. |
|
| Memory Size: | 2 GB |
| Memory Type: | GDDR5 |
| Memory Clock: | 1.502 GHz |
| Memory Speed: | 6.0 Gbps |
| Memory bandwidth: | 48 GB/s |
| Memory Interface: | 64 bit |
Clock SpeedsThe manufacturer specifies the memory clock of the KFA2 GeForce GT 1030 EXOC White with 1.252 GHz (base clock) or with 1.506 GHz (turbo clock). If overclocking is supported (see below), the clock rate can be increased even further. |
|
| Base Clock: | 1.252 GHz + 2 % |
| Boost Clock: | 1.506 GHz+ 3 % |
| Avg (Game) Clock: | |
| Overclocking: | Yes |
Thermal DesignThe KFA2 GeForce GT 1030 EXOC White has plugs, which supply the graphics card with energy. The maximum operating temperature of the card is 97 °C. |
|
| TDP: | 30 W |
| TDP (up): | -- |
| Tjunction max: | 97 °C |
| PCIe-Power: | |
Cooler & FansThe KFA2 GeForce GT 1030 EXOC White is equipped with 1 Axial main fans, which are used to cool the graphics processor and graphics memory. |
|
| Fan-Type: | Axial |
| Fan 1: | 1 x 50 mm |
| Fan 2: | -- |
| Cooler-Type: | Air cooling |
| Noise (Idle): | -- |
| Noise (Load): | -- |
ConnectivityUp to 2 screens can be connected to the KFA2 GeForce GT 1030 EXOC White, whereby the backward-compatible HDCP copy protection is supported in the 2.2 version. |
|
| Max. Displays: | 2 |
| HDCP-Version: | 2.2 |
| HDMI Ports: | 1x HDMI v2.0b |
| DP Ports: | -- |
| DVI Ports: | 1 |
| VGA Ports: | -- |
| USB-C Ports: | -- |
FeaturesetThe KFA2 GeForce GT 1030 EXOC White supports a maximum resolution of 7680x4320 pixels and the DirectX standard version 12_1. |
|
| Max. resolution: | 7680x4320 |
| DirectX: | 12_1 |
| Raytracing: | No |
| DLSS / FSR: | Yes |
| LED: | No LED lighting |
Supported Video CodecsHere is a list of which video codecs can be decoded / encoded by the KFA2 GeForce GT 1030 EXOC White in hardware in order to minimize the processor load. |
|
| h264: | Decode |
| h265 / HEVC: | Decode |
| VP8: | No |
| VP9: | Decode |
| AV1: | No |
DimensionsThe dimensions of the KFA2 GeForce GT 1030 EXOC White are 162 mm in length, 121 mm in height and 22 mm in width. Thus 1 PCIe-Slots are needed in a case. |
|
| Length: | 162 mm |
| Height: | 121 mm |
| Width: | 22 mm |
| Width (Slots): | 1 PCIe-Slots |
| Weight: | -- |
Additional dataThe KFA2 GeForce GT 1030 EXOC White is manufactured in a structure width of 14 nm and has a PCIe 3.0 x 4 lanes interface. The graphics card was released in Q2/2017. |
|
| GPU Interface: | PCIe 3.0 x 4 |
| Release date: | Q2/2017 |
| Launch Price: | 79 $ (Reference) |
| Structure size: | 14 nm |
| Part-no: | 30NPH4HVQ5EK |
| Documents: | data sheet |
1.252 GHz, 2 GB (30 W TDP)
Buy this graphic card at amazon!
Rate this graphics card
Benchmark results
3DMark Benchmark (DirectX, Raytracing)
3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.
Time Spy Extreme Graphics score
|
KFA2 GeForce GT 1030 EXOC White
2 GB GDDR5 |
||
|
NVIDIA GeForce GT 1030
Average of gpu group |
||
Battlefield 5
Battlefield 5 is a visually stunning game that is ideal as a graphics card benchmark. We test the game with maximum details on Windows 10.
3840x2160 (2160p)
|
|
KFA2 GeForce GT 1030 EXOC White
2 GB GDDR5 |
||
|
|
NVIDIA GeForce GT 1030
Average of gpu group |
||
2560x1440 (1440p)
|
|
KFA2 GeForce GT 1030 EXOC White
2 GB GDDR5 |
||
|
|
NVIDIA GeForce GT 1030
Average of gpu group |
||
1920x1080 (1080p)
|
|
KFA2 GeForce GT 1030 EXOC White
2 GB GDDR5 |
||
|
|
NVIDIA GeForce GT 1030
Average of gpu group |
||
FP32 Performance (Single-precision TFLOPS)
The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.
FP32 (TFLOPS)
|
|
KFA2 GeForce GT 1030 EXOC White
2 GB GDDR5 |
||
More benchmarks
In order to determine the performance of a graphics card, so-called "benchmarks" are carried out. The benchmark software carries out special calculations to determine the performance of a graphics card. We use so-called theoretical or synthetic benchmarks (e.g. 3D Mark) as well as real game benchmarks. To ensure real comparability of the results, we pay attention to the correct execution of the benchmarks as well as the condition of the graphics card and the system.We use the following benchmarks to measure the performance of a graphics card:
3DMark Benchmark
5,148 entries
5,148 entries
Shadow of the Tomb Raider
5,148 entries
5,148 entries
Battlefield 5
4,510 entries
4,510 entries
FP32 Performance
5,522 entries
5,522 entries
