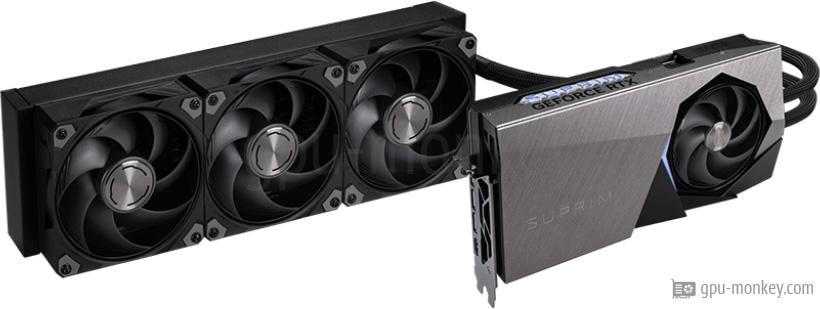

All technical data and various benchmarks of the MSI GeForce RTX 5090 SUPRIM LIQUID SOC are listed on this page. The graphics card is based on the GB202-300-A1 (Blackwell) graphics chip, which is manufactured with a structure width of 5 nm. The MSI GeForce RTX 5090 SUPRIM LIQUID SOC can operate up to 4 screens with a maximum resolution of up to 7680x4320 become.
GPU
The MSI GeForce RTX 5090 SUPRIM LIQUID SOC has 170 execution units with 21760 shaders. This gives the graphics card a theoretical FP32 computing power of 112.33 TFLOPS.
The MSI GeForce RTX 5090 SUPRIM LIQUID SOC is equipped with 32 GB graphics memory of the type GDDR7. The memory clock of the graphics card is 1.750 GHz and the speed is 28 Gbps.
Memory Size:
32 GB
Memory Type:
GDDR7
Memory Clock:
1.750 GHz
Memory Speed:
28.0 Gbps
Memory bandwidth:
1792 GB/s
Memory Interface:
512 bit
Clock Speeds
The base frequency of this graphics card is 2.017 GHz and the manufacturer specifies the maximum turbo clock as 2.580 GHz. If supported (see below), the performance can be further increased by overclocking.
Base Clock:
2.017 GHz
Boost Clock:
2.580 GHz+ 7 %
Avg (Game) Clock:
Overclocking:
Yes
Thermal Design
The MSI GeForce RTX 5090 SUPRIM LIQUID SOC is powered by 1 x 16-Pin connectors. The TDP (Thermal Design Power) of the graphics card is 575 W.
TDP:
575 W
TDP (up):
--
Tjunction max:
90 °C
PCIe-Power:
1 x 16-Pin
Cooler & Fans
Graphics processor and graphics memory of the MSI GeForce RTX 5090 SUPRIM LIQUID SOC are cooled by a Air cooling.
Fan-Type:
Axial / Axial (Radiator)
Fan 1:
1 x 100 mm
Fan 2:
3 x 120 mm
Cooler-Type:
Air cooling
Noise (Idle):
0 dB / Silent
Noise (Load):
--
Connectivity
Up to 4 monitors can be operated with the MSI GeForce RTX 5090 SUPRIM LIQUID SOC.
Max. Displays:
4
HDCP-Version:
2.3
HDMI Ports:
1x HDMI v2.1b
DP Ports:
3x DP v2.1b
DVI Ports:
--
VGA Ports:
--
USB-C Ports:
--
Featureset
With the MSI GeForce RTX 5090 SUPRIM LIQUID SOC it is possible to operate a screen with a resolution of up to 7680x4320 pixels. Furthermore, the DirectX standard version 12_2 (Ultimate) is supported.
Max. resolution:
7680x4320
DirectX:
12_2 (Ultimate)
Raytracing:
Yes
DLSS / FSR:
Yes
LED:
MSI Mystic Light
Supported Video Codecs
This area lists the video codecs that the MSI GeForce RTX 5090 SUPRIM LIQUID SOC can decode or encode in hardware in order to minimize the processor load, which leads to lower power consumption.
h264:
Decode / Encode
h265 / HEVC:
Decode / Encode
VP8:
Decode / Encode
VP9:
Decode / Encode
AV1:
Decode / Encode
Dimensions
The MSI GeForce RTX 5090 SUPRIM LIQUID SOC needs the space of 3 PCIe-Slots in a case. It is 280 mm long, 148 mm high and 51 mm wide.
Length:
280 mm
Height:
148 mm
Width:
51 mm
Width (Slots):
3 PCIe-Slots
Weight:
2969 g
SFF-Ready:
No
Additional data
The MSI GeForce RTX 5090 SUPRIM LIQUID SOC was released in Q1/2025 at a price of 2,329 $ (Reference). The graphics card manufactured in 5 nm is connected to the system via PCIe 5 x 16 lanes.
Here you can rate this graphics card and help other visitors with their purchase decision. The average rating for this graphics card is currently 0 stars (0 ratings). Rate it now:
The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.
In order to determine the performance of a graphics card, so-called "benchmarks" are carried out. The benchmark software carries out special calculations to determine the performance of a graphics card. We use so-called theoretical or synthetic benchmarks (e.g. 3D Mark) as well as real game benchmarks. To ensure real comparability of the results, we pay attention to the correct execution of the benchmarks as well as the condition of the graphics card and the system.
We use the following benchmarks to measure the performance of a graphics card:
