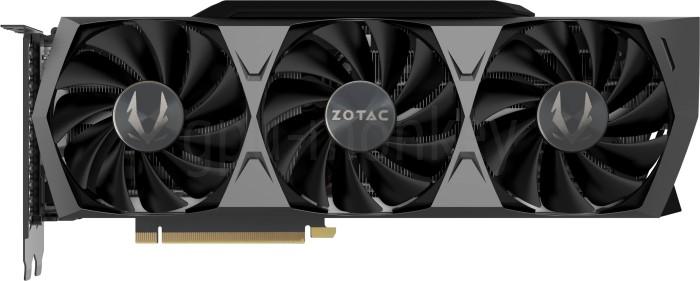

ZOTAC Gaming GeForce RTX 3090 Trinity OC
Benchmark and Specs
Last updated:
Benchmark and Specs
Here you will find all technical data as well as various benchmarks of the ZOTAC Gaming GeForce RTX 3090 Trinity OC. Up to 4 screens with a maximum resolution of up to 7680x4320 can be operated with this graphics card. The maximum turbo clock of the ZOTAC Gaming GeForce RTX 3090 Trinity OC is 1.710 GHz, so the graphics card achieves an FP32 computing power of 35.89 TFLOPS.
GPUThe ZOTAC Gaming GeForce RTX 3090 Trinity OC is equipped with 82 execution and 10496 shader units. With single precision, a theoretical FP32 computing power of 35.89 TFLOPS is achieved. |
|
| Based on: | NVIDIA GeForce RTX 3090 |
| GPU Chip: | GA102-300-A1 (Ampere) |
| Streaming Multiprocessors: | 82 |
| Shader: | 10496 |
| Render Output Units: | 112 |
| Texture Units: | 328 |
| Raytracing Cores: | 82 |
MemoryThe ZOTAC Gaming GeForce RTX 3090 Trinity OC has a 384 bit wide memory interface, with which a memory bandwidth of 936 GB/s is achieved. In total, 24 GB GDDR6X graphics memory is available for the graphics card. |
|
| Memory Size: | 24 GB |
| Memory Type: | GDDR6X |
| Memory Clock: | 1.219 GHz |
| Memory Speed: | 19.5 Gbps |
| Memory bandwidth: | 936 GB/s |
| Memory Interface: | 384 bit |
Clock SpeedsThe manufacturer specifies the memory clock of the ZOTAC Gaming GeForce RTX 3090 Trinity OC with 1.395 GHz (base clock) or with 1.710 GHz (turbo clock). If overclocking is supported (see below), the clock rate can be increased even further. |
|
| Base Clock: | 1.395 GHz |
| Boost Clock: | 1.710 GHz + 1 % |
| Avg (Game) Clock: | 1.695 GHz |
| Overclocking: | Yes |
Thermal DesignThe ZOTAC Gaming GeForce RTX 3090 Trinity OC has 2 x 8-Pin plugs, which supply the graphics card with energy. The maximum operating temperature of the card is 93 °C. |
|
| TDP: | 350 W |
| TDP (up): | -- |
| Tjunction max: | 93 °C |
| PCIe-Power: | 2 x 8-Pin |
Cooler & FansThe ZOTAC Gaming GeForce RTX 3090 Trinity OC is equipped with 3 Axial main fans, which are used to cool the graphics processor and graphics memory. |
|
| Fan-Type: | Axial |
| Fan 1: | 3 x 100 mm |
| Fan 2: | -- |
| Cooler-Type: | Air cooling |
| Noise (Idle): | 0 dB / Silent |
| Noise (Load): | 27 dB |
ConnectivityUp to 4 screens can be connected to the ZOTAC Gaming GeForce RTX 3090 Trinity OC, whereby the backward-compatible HDCP copy protection is supported in the 2.3 version. |
|
| Max. Displays: | 4 |
| HDCP-Version: | 2.3 |
| HDMI Ports: | 1x HDMI v2.1 |
| DP Ports: | 3x DP v1.4a |
| DVI Ports: | -- |
| VGA Ports: | -- |
| USB-C Ports: | -- |
FeaturesetThe ZOTAC Gaming GeForce RTX 3090 Trinity OC supports a maximum resolution of 7680x4320 pixels and the DirectX standard version 12_2 (Ultimate). |
|
| Max. resolution: | 7680x4320 |
| DirectX: | 12_2 (Ultimate) |
| Raytracing: | Yes |
| DLSS / FSR: | Yes |
| LED: | ZOTAC SPECTRA |
Supported Video CodecsHere is a list of which video codecs can be decoded / encoded by the ZOTAC Gaming GeForce RTX 3090 Trinity OC in hardware in order to minimize the processor load. |
|
| h264: | Decode / Encode |
| h265 / HEVC: | Decode / Encode |
| VP8: | Decode |
| VP9: | Decode |
| AV1: | Decode |
DimensionsThe dimensions of the ZOTAC Gaming GeForce RTX 3090 Trinity OC are 318 mm in length, 121 mm in height and 58 mm in width. Thus 3 PCIe-Slots are needed in a case. |
|
| Length: | 318 mm |
| Height: | 121 mm |
| Width: | 58 mm |
| Width (Slots): | 3 PCIe-Slots |
| Weight: | -- |
Additional dataThe ZOTAC Gaming GeForce RTX 3090 Trinity OC is manufactured in a structure width of 8 nm and has a PCIe 4.0 x 16 lanes interface. The graphics card was released in Q4/2020. |
|
| GPU Interface: | PCIe 4.0 x 16 |
| Release date: | Q4/2020 |
| Launch Price: | 1,549 $ |
| Structure size: | 8 nm |
| Part-no: | ZT-A30900J-10P |
| Documents: | data sheet |
1.395 GHz, 24 GB (350 W TDP)
Buy this graphic card at amazon!
Rate this graphics card
Benchmark results
3DMark Benchmark (DirectX, Raytracing)
3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.
Time Spy Extreme Graphics score
|
ZOTAC Gaming GeForce RTX 3090 Trinity OC
24 GB GDDR6X |
||
|
NVIDIA GeForce RTX 3090
Average of gpu group |
||
Port Royal (Raytracing)
|
|
ZOTAC Gaming GeForce RTX 3090 Trinity OC
24 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 3090
Average of gpu group |
||
Speed Way Graphics Score (Raytracing)
|
|
ZOTAC Gaming GeForce RTX 3090 Trinity OC
24 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 3090
Average of gpu group |
||
Cyberpunk 2077
Cyberpunk 2077 was developed by CD Projekt Red and is based on the development studio's own REDengine 4. Ray tracing is switched off in our benchmarks.
3840x2160 (2160p)
|
|
ZOTAC Gaming GeForce RTX 3090 Trinity OC
24 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 3090
Average of gpu group |
||
2560x1440 (1440p)
|
|
ZOTAC Gaming GeForce RTX 3090 Trinity OC
24 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 3090
Average of gpu group |
||
1920x1080 (1080p)
|
|
ZOTAC Gaming GeForce RTX 3090 Trinity OC
24 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 3090
Average of gpu group |
||
The Last of Us Part 1
The Last of Us Part One is a game released by Sony in June 2013 exclusively for the Playstation and released for the PC in early 2023. The benchmark values here were determined at high details.
3840x2160 (2160p)
|
|
ZOTAC Gaming GeForce RTX 3090 Trinity OC
24 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 3090
Average of gpu group |
||
2560x1440 (1440p)
|
|
ZOTAC Gaming GeForce RTX 3090 Trinity OC
24 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 3090
Average of gpu group |
||
1920x1080 (1080p)
|
|
ZOTAC Gaming GeForce RTX 3090 Trinity OC
24 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 3090
Average of gpu group |
||
Battlefield 5
Battlefield 5 is a visually stunning game that is ideal as a graphics card benchmark. We test the game with maximum details on Windows 10.
3840x2160 (2160p)
|
|
ZOTAC Gaming GeForce RTX 3090 Trinity OC
24 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 3090
Average of gpu group |
||
2560x1440 (1440p)
|
|
ZOTAC Gaming GeForce RTX 3090 Trinity OC
24 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 3090
Average of gpu group |
||
1920x1080 (1080p)
|
|
ZOTAC Gaming GeForce RTX 3090 Trinity OC
24 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 3090
Average of gpu group |
||
Geekbench 6 (OpenCL, Vulkan, Metal)
Geekbench 6 is a cross-platform benchmark for main processors, which also carries out 3 different graphics benchmarks and outputs them in the form of a numerical value.
Geekbench 6 - OpenCL
|
|
ZOTAC Gaming GeForce RTX 3090 Trinity OC
24 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 3090
Average of gpu group |
||
Geekbench 6 - Vulkan
|
|
ZOTAC Gaming GeForce RTX 3090 Trinity OC
24 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 3090
Average of gpu group |
||
FP32 Performance (Single-precision TFLOPS)
The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.
FP32 (TFLOPS)
|
|
ZOTAC Gaming GeForce RTX 3090 Trinity OC
24 GB GDDR6X |
||
