AMD 1 models Q1/2017

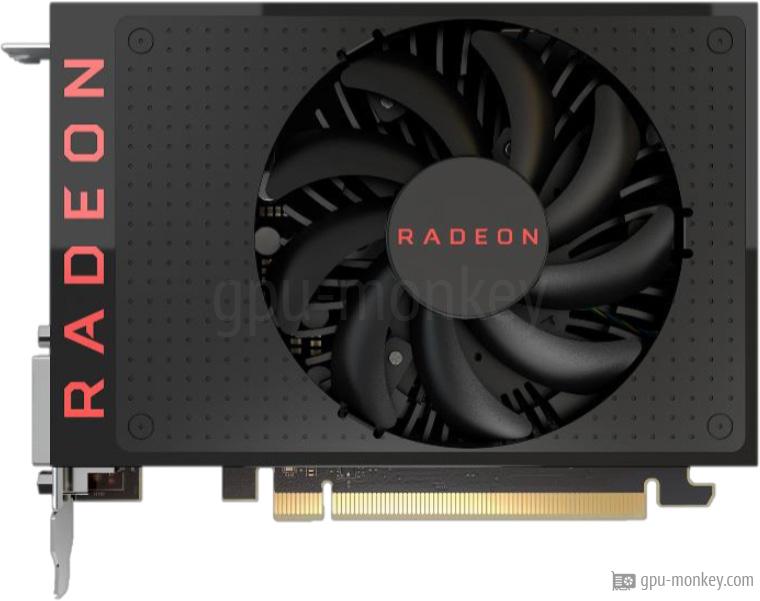

AMD Radeon RX 460 (16CU) GPU list 2026

We list 1 graphics cards based on the AMD Radeon RX 460 (16CU) (Baffin XT) with 2 GB GDDR5 – with benchmarks, clock speeds and technical data of all board partner models.

FP32: 2.46TFLOPS
Boost Clock: 1.20GHz
Memory: 2GB GDDR5
TDP: 75W

All models Check price on Amazon

GPUs based on AMD Radeon RX 460 (16CU)

All board partner models sorted by FP32 performance. The percentage shows the deviation of the boost clock from the reference design.

GPU	FP32	Boost Clock	Memory	TDP
AMD Radeon RX 460 (16CU)	2.46TFLOPS	1.20GHz	2GB	75W

Technical details

GPU

GPU Chip: Baffin XT (Baffin)
Streaming Multiprocessors: 16
Shader: 1024
Render Output Units: 16
Texture Units: 64
FP32: 2.46 TFLOPS

Memory

Memory Size: 2 GB
Memory Type: GDDR5
Memory Clock: 1.750 GHz
Memory Speed: 7.0 Gbps
Memory bandwidth: 112 GB/s
Memory Interface: 128 bit

Clock Speeds

Base Clock: 1.090 GHz
Boost Clock: 1.200 GHz

Thermal Design

TDP: 75 W
Tjunction max: 95 °C
GPU Interface: PCIe 3.0 x 8

Featureset

Max. Displays: 3
Max. resolution: 7680x4320
DirectX: 12_0
Raytracing: No
DLSS / FSR: Yes
Structure size: 14 nm

Supported Video Codecs

h264: Decode / Encode
h265 / HEVC: Decode / Encode
VP8: No
VP9: No
AV1: No
Launch Price: 139 $

TOP 5 GPUs in group by FP32 performance

1AMD Radeon RX 460 (16CU)2 GB GDDR52.46TFLOPS

TOP 5 GPUs in group by maximum TDP

1AMD Radeon RX 460 (16CU)2 GB GDDR575W

Benchmark results

Average of gpu group

3DMark Benchmark (DirectX, Raytracing)

3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.

Time Spy Extreme Graphics score

AMD Radeon RX 560 (16 CU)4 GB GDDR5
812
NVIDIA GeForce GTX 1050 2GB2 GB GDDR5
796
NVIDIA GeForce GTX 9502 GB GDDR5
789
AMD Radeon RX 460 (16CU)2 GB GDDR5
776
AMD Radeon RX 560 (14 CU)4 GB GDDR5
748
AMD Radeon RX 460 (14CU)2 GB GDDR5
722
AMD Radeon RX 550 (Baffin 10 CU)2 GB GDDR5
573

View all 3DMark Benchmark (DirectX, Raytracing) benchmark results

Geekbench 6 (OpenCL, Vulkan, Metal)

Geekbench 6 is a cross-platform benchmark for main processors, which also carries out 3 different graphics benchmarks and outputs them in the form of a numerical value.
