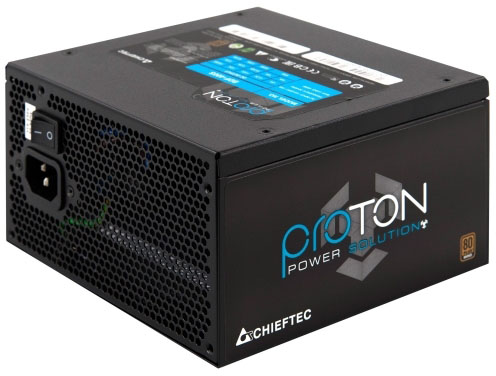

Chieftec Proton Series BDF-600S

Chieftec 80 PLUS Bronze

Chieftec Proton Series BDF-600S 600 W

Power: 600W
PCIe 8-Pin: 2
Form Factor: ATX
Warranty: 2Years

Buy this power supply at Amazon

Technical details

Power

Output Power: 600 W
80 Plus Certification: 80 PLUS Bronze
Efficiency @ 115V/50%: 85 %
Efficiency @ 230V/50%: 88 %
Input Voltage: 100-240

Connectors

Cable Management: No
ATX 12V: 1
PCIe 8-Pin (6+2): 2
SATA: 6
Molex / IDE: 3

Dimensions

Form Factor: ATX
Length: 140 mm
Height: 86 mm
Width: 150 mm

Additional data

Manufacturer: Chieftec
Series: Proton
Fan: 120 mm
RGB Fan: No
Warranty: 2 Years
Release date: Q3/2017
Launch Price: 80 $
Part-no: BDF-600S
Documents: data sheet

Power Supply recommended for this Graphics Cards

1AMD Radeon RX 6700 XT12 GB GDDR6230W TDP
2NVIDIA RTX A500024 GB GDDR6230W TDP
3NVIDIA RTX A550024 GB GDDR6230W TDP
4AMD Radeon RX 5700 XT8 GB GDDR6225W TDP
5AMD Radeon RX 5908 GB GDDR5225W TDP
6Intel Arc A750 Graphics8 GB GDDR6225W TDP
7Intel Arc A770 Graphics 16GB16 GB GDDR6225W TDP
8Intel Arc A770 Graphics 8GB8 GB GDDR6225W TDP
9NVIDIA GeForce RTX 3060 Ti GDDR6X8 GB GDDR6X225W TDP
10AMD Radeon RX 907016 GB GDDR6220W TDP
11AMD Radeon RX 9070 GRE12 GB GDDR6220W TDP
12NVIDIA GeForce RTX 30708 GB GDDR6220W TDP

Power Supply Series: Chieftec Proton

Power Supply	Power	80 Plus	PCIe 8-Pin	Launch Price
Chieftec Proton Series BDF-400S	400W	80 PLUS Bronze	1x	60$
Chieftec Proton Series BDF-500S	500W	80 PLUS Bronze	2x	70$
Chieftec Proton Series BDF-650C	650W	80 PLUS Bronze	4x	90$
Chieftec Proton Series BDF-750C	750W	80 PLUS Bronze	4x	100$
Chieftec Proton Series BDF-850C	850W	80 PLUS Bronze	6x	110$
Chieftec Proton Series BDF-1000C	1000W	80 PLUS Bronze	6x	120$
