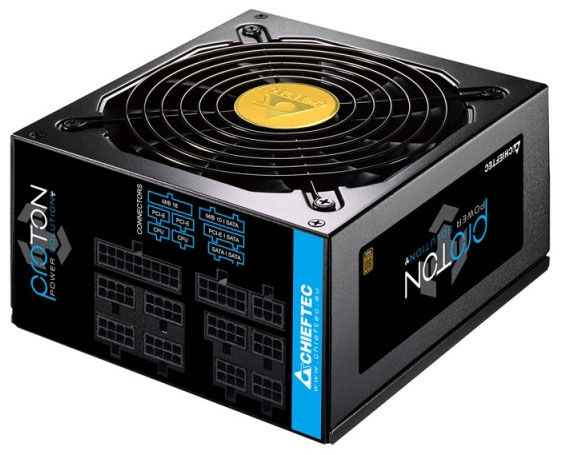

Chieftec Proton Series BDF-850C

Chieftec 80 PLUS Bronze

Chieftec Proton Series BDF-850C 850 W

Power: 850W
PCIe 8-Pin: 6
Form Factor: ATX
Warranty: 2Years

Buy this power supply at Amazon

Technical details

Power

Output Power: 850 W
80 Plus Certification: 80 PLUS Bronze
Efficiency @ 115V/50%: 85 %
Efficiency @ 230V/50%: 88 %
Input Voltage: 100-240

Connectors

Cable Management: Yes
ATX 12V: 2
PCIe 8-Pin (6+2): 6
SATA: 9
Molex / IDE: 3

Dimensions

Form Factor: ATX
Length: 160 mm
Height: 86 mm
Width: 150 mm

Additional data

Manufacturer: Chieftec
Series: Proton
Fan: 140 mm
RGB Fan: No
Warranty: 2 Years
Release date: Q3/2017
Launch Price: 110 $
Part-no: BDF-850C
Documents: data sheet

Power Supply recommended for this Graphics Cards

1NVIDIA GeForce RTX 5080 SUPER24 GB GDDR7415W TDP
2NVIDIA GeForce RTX 4080 TI20 GB GDDR6X400W TDP
3NVIDIA GeForce GTX TITAN Z12 GB GDDR5375W TDP
4NVIDIA GeForce RTX 508016 GB GDDR7360W TDP
5AMD Radeon RX 7900 XTX24 GB GDDR6355W TDP
6NVIDIA GeForce RTX 3080 12GB12 GB GDDR6X350W TDP
7NVIDIA GeForce RTX 3080 Ti12 GB GDDR6X350W TDP
8NVIDIA GeForce RTX 309024 GB GDDR6X350W TDP
9NVIDIA GeForce RTX 5070 TI SUPER16 GB GDDR7350W TDP
10AMD Radeon RX 6950 XT16 GB GDDR6335W TDP
11NVIDIA GeForce RTX 308010 GB GDDR6X320W TDP
12NVIDIA GeForce RTX 3080 LHR10 GB GDDR6X320W TDP

Power Supply Series: Chieftec Proton

Power Supply	Power	80 Plus	PCIe 8-Pin	Launch Price
Chieftec Proton Series BDF-400S	400W	80 PLUS Bronze	1x	60$
Chieftec Proton Series BDF-500S	500W	80 PLUS Bronze	2x	70$
Chieftec Proton Series BDF-600S	600W	80 PLUS Bronze	2x	80$
Chieftec Proton Series BDF-650C	650W	80 PLUS Bronze	4x	90$
Chieftec Proton Series BDF-750C	750W	80 PLUS Bronze	4x	100$
Chieftec Proton Series BDF-1000C	1000W	80 PLUS Bronze	6x	120$
