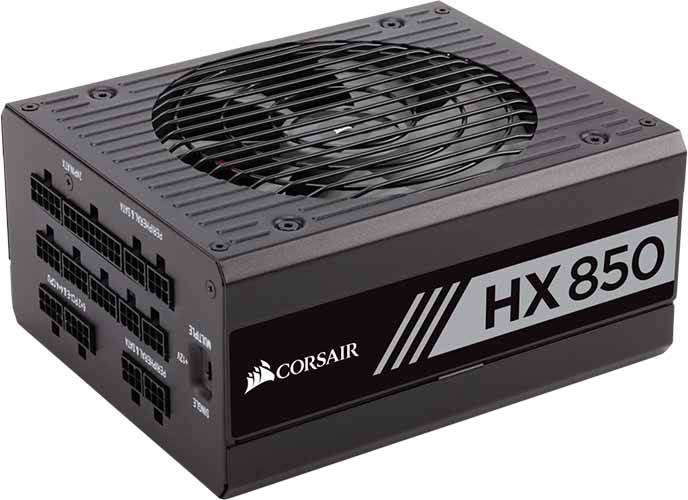

Corsair HX Series HX850 - 850 W

Corsair HX Series HX850

Power

Output Power: 850 W
80 Plus Certification: 80 PLUS Platinum
Efficiency @ 115V/50%: 92 %
Efficiency @ 230V/50%: 93 %
Input Voltage: 100-240 Vac
Input Frequency: 50/60 Hz

Connectors

Cable Management: Yes
ATX 24-Pin: 1 x
EPS CPU (P4/P8): 2 x
PCIe 8 Pin (6+2): 6 x
SATA: 16 x
PATA (4-Pin IDE): 6 x

Dimensions

Form Factor: ATX
Length: 180 mm
Height: 86 mm
Width: 150 mm

Device

Manufacturer: Corsair
Series: HX
Part-no: CP-9020138
Launch Price: 182 $

Additional data

Fan: 135 mm
RGB Fan: No
Warranty: 10 Years
Release date: Q1/2017
Documents: data sheet

Power Supply recommended for this Graphics Cards


GPU TDP
NVIDIA GeForce RTX 4080 TI NVIDIA GeForce RTX 4080 TI 400 W
NVIDIA GeForce GTX TITAN Z NVIDIA GeForce GTX TITAN Z 375 W
AMD Radeon RX 7900 XTX AMD Radeon RX 7900 XTX 355 W
NVIDIA GeForce RTX 3080 12GB NVIDIA GeForce RTX 3080 12GB 350 W
NVIDIA GeForce RTX 3080 Ti NVIDIA GeForce RTX 3080 Ti 350 W
NVIDIA GeForce RTX 3090 NVIDIA GeForce RTX 3090 350 W
AMD Radeon RX 6950 XT AMD Radeon RX 6950 XT 335 W
NVIDIA GeForce RTX 3080 NVIDIA GeForce RTX 3080 320 W
NVIDIA GeForce RTX 3080 LHR NVIDIA GeForce RTX 3080 LHR 320 W
NVIDIA GeForce RTX 4080 NVIDIA GeForce RTX 4080 320 W
NVIDIA GeForce RTX 4080 SUPER NVIDIA GeForce RTX 4080 SUPER 320 W
AMD Radeon RX 6800 XT AMD Radeon RX 6800 XT 300 W
AMD Radeon RX 6900 XT AMD Radeon RX 6900 XT 300 W
AMD Radeon RX 7900 XT AMD Radeon RX 7900 XT 300 W
AMD Radeon VII AMD Radeon VII 300 W
NVIDIA RTX 6000 Ada NVIDIA RTX 6000 Ada 300 W
NVIDIA RTX A6000 NVIDIA RTX A6000 300 W
AMD Radeon Pro W7900 AMD Radeon Pro W7900 295 W
AMD RX Vega 64 AMD RX Vega 64 295 W
NVIDIA GeForce RTX 3070 Ti NVIDIA GeForce RTX 3070 Ti 290 W
NVIDIA GeForce RTX 4070 Ti NVIDIA GeForce RTX 4070 Ti 285 W
NVIDIA GeForce RTX 4070 Ti SUPER NVIDIA GeForce RTX 4070 Ti SUPER 285 W
NVIDIA RTX 5880 Ada NVIDIA RTX 5880 Ada 285 W
NVIDIA TITAN RTX NVIDIA TITAN RTX 280 W
AMD Radeon R9 FURY AMD Radeon R9 FURY 275 W

Power Supply Series: Corsair HX


Power Supply PCIe 8 Pin (6+2) Launch Price
Corsair HX Series HX750 Corsair HX Series HX750 - 750 W 4 x 169 $
Corsair HX Series HX850 Corsair HX Series HX850 - 850 W 6 x 182 $
Corsair HX Series HX1000 Corsair HX Series HX1000 - 1000 W 8 x 224 $
Corsair HX Series HX1200 Corsair HX Series HX1200 - 1200 W 8 x 243 $
