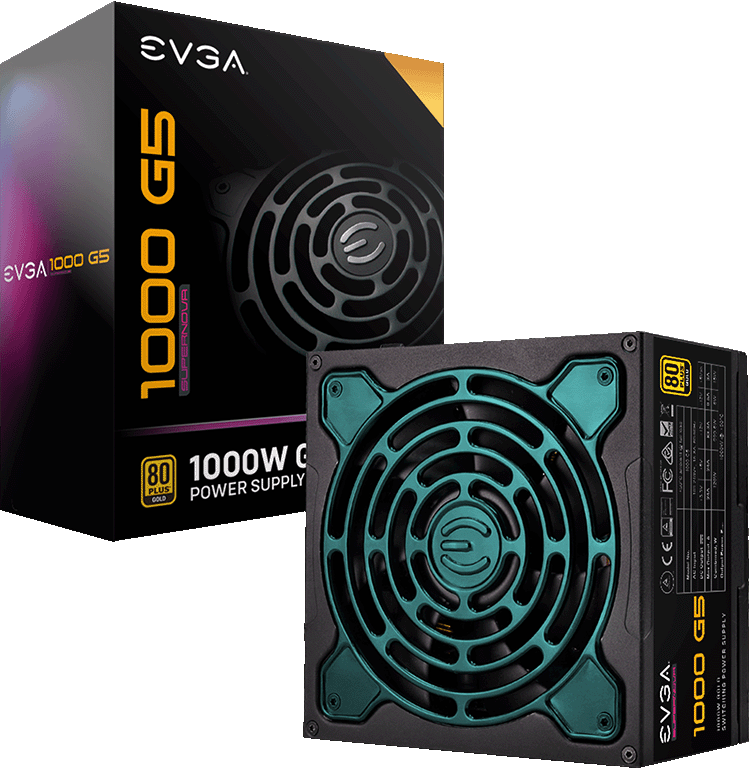

EVGA SuperNOVA 1000 G5 - 1000 W
Power |
|
| Output Power: | 1000 W |
| 80 Plus Certification: | 80 PLUS Gold |
| Efficiency @ 115V/50%: | ≥ 91 % |
| Efficiency @ 230V/50%: | ≥ 92 % |
| Input Voltage: | 100-240 Vac |
| Input Frequency: | 50/60 Hz |
Connectors |
|
| Cable Management: | Yes |
| ATX 24-Pin: | 1 x |
| EPS CPU (P4/P8): | 2 x |
| PCIe 8 Pin (6+2): | 8 x |
| SATA: | 12 x |
| PATA (4-Pin IDE): | 4 x |
Dimensions |
|
| Form Factor: | ATX |
| Length: | 150 mm |
| Height: | 86 mm |
| Width: | 150 mm |
Device |
|
| Manufacturer: | EVGA |
| Series: | G5 |
| Part-no: | 220-G5-1000-X2 |
| Launch Price: | 220 $ |
Additional data |
|
| Fan: | 135 mm |
| RGB Fan: | No |
| Warranty: | 10 Years |
| Release date: | Q3/2019 |
| Documents: | data sheet |
Power Supply recommended for this Graphics Cards
| GPU | TDP | ||
|
NVIDIA GeForce RTX 3090 Ti | 450 W | |
|
|
NVIDIA GeForce RTX 4090 | 450 W | |
|
|
NVIDIA GeForce RTX 4080 TI | 400 W | |
|
|
NVIDIA GeForce RTX 5080 | 400 W | |
|
|
NVIDIA GeForce GTX TITAN Z | 375 W | |
|
AMD Radeon RX 7900 XTX | 355 W | |
|
|
NVIDIA GeForce RTX 3080 12GB | 350 W | |
|
|
NVIDIA GeForce RTX 3080 Ti | 350 W | |
|
|
NVIDIA GeForce RTX 3090 | 350 W | |
|
|
AMD Radeon RX 6950 XT | 335 W | |
|
|
NVIDIA GeForce RTX 3080 | 320 W | |
|
|
NVIDIA GeForce RTX 3080 LHR | 320 W | |
|
|
NVIDIA GeForce RTX 4080 | 320 W | |
|
|
NVIDIA GeForce RTX 4080 SUPER | 320 W | |
|
|
AMD Radeon RX 6800 XT | 300 W | |
|
|
AMD Radeon RX 6900 XT | 300 W | |
|
|
AMD Radeon RX 7900 XT | 300 W | |
|
|
AMD Radeon VII | 300 W | |
|
|
NVIDIA RTX 6000 Ada | 300 W | |
|
|
NVIDIA RTX A6000 | 300 W | |
|
|
AMD Radeon Pro W7900 | 295 W | |
|
|
AMD RX Vega 64 | 295 W | |
|
|
NVIDIA GeForce RTX 3070 Ti | 290 W | |
|
|
NVIDIA GeForce RTX 4070 Ti | 285 W | |
|
|
NVIDIA GeForce RTX 4070 Ti SUPER | 285 W |
Power Supply Series: EVGA G5
| Power Supply | PCIe 8 Pin (6+2) | Launch Price | ||
|
EVGA SuperNOVA 650 G5 - 650 W | 3 x | 140 $ | |
|
|
EVGA SuperNOVA 750 G5 - 750 W | 6 x | 145 $ | |
|
|
EVGA SuperNOVA 850 G5 - 850 W | 6 x | 170 $ | |
|
|
EVGA SuperNOVA 1000 G5 - 1000 W | 8 x | 220 $ |
