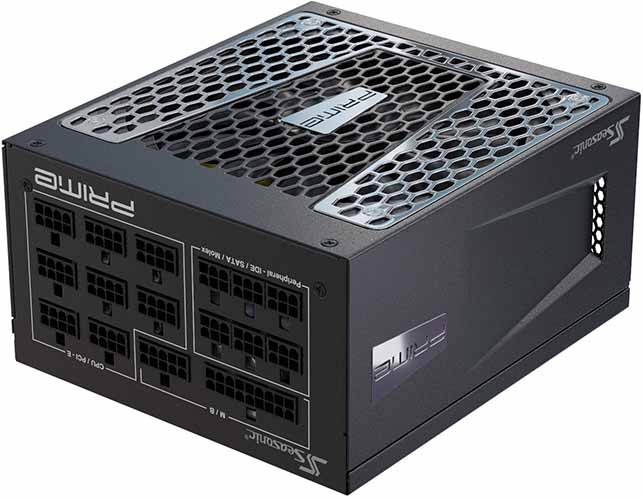

Seasonic PRIME TX-850

Seasonic 80 PLUS Titanium

Seasonic PRIME TX-850 850 W

Power: 850W
PCIe 8-Pin: 6
Form Factor: ATX
Warranty: 12Years

Buy this power supply at Amazon

Technical details

Power

Output Power: 850 W
80 Plus Certification: 80 PLUS Titanium
Efficiency @ 115V/50%: 94 %
Efficiency @ 230V/50%: 96 %
Input Voltage: 100-240

Connectors

Cable Management: Yes
ATX 12V: 2
PCIe 8-Pin (6+2): 6
SATA: 14
Molex / IDE: 5

Dimensions

Form Factor: ATX
Length: 170 mm
Height: 86 mm
Width: 150 mm

Additional data

Manufacturer: Seasonic
Series: PRIME TX
Fan: 135 mm
RGB Fan: No
Warranty: 12 Years
Release date: Q3/2019
Launch Price: 219 $
Documents: data sheet

Power Supply recommended for this Graphics Cards

1NVIDIA GeForce RTX 5080 SUPER24 GB GDDR7415W TDP
2NVIDIA GeForce RTX 4080 TI20 GB GDDR6X400W TDP
3NVIDIA GeForce GTX TITAN Z12 GB GDDR5375W TDP
4NVIDIA GeForce RTX 508016 GB GDDR7360W TDP
5AMD Radeon RX 7900 XTX24 GB GDDR6355W TDP
6NVIDIA GeForce RTX 3080 12GB12 GB GDDR6X350W TDP
7NVIDIA GeForce RTX 3080 Ti12 GB GDDR6X350W TDP
8NVIDIA GeForce RTX 309024 GB GDDR6X350W TDP
9NVIDIA GeForce RTX 5070 TI SUPER16 GB GDDR7350W TDP
10AMD Radeon RX 6950 XT16 GB GDDR6335W TDP
11NVIDIA GeForce RTX 308010 GB GDDR6X320W TDP
12NVIDIA GeForce RTX 3080 LHR10 GB GDDR6X320W TDP

Power Supply Series: Seasonic PRIME TX

Power Supply	Power	80 Plus	PCIe 8-Pin	Launch Price
Seasonic PRIME TX-650	650W	80 PLUS Titanium	4x	199$
Seasonic PRIME TX-750	750W	80 PLUS Titanium	4x	205$
Seasonic PRIME TX-1000	1000W	80 PLUS Titanium	6x	289$
