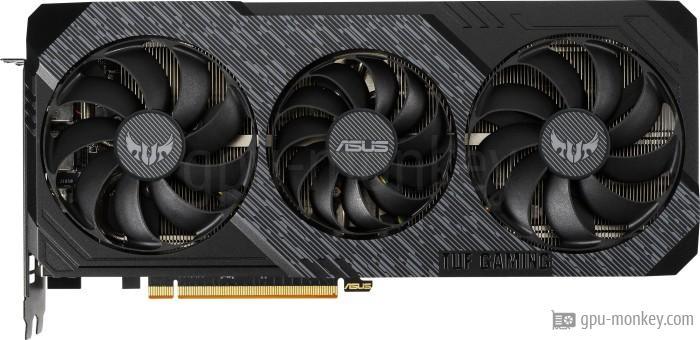

ASUS TUF Gaming X3 Radeon RX 5700 OC Evo
vs
GIGABYTE Radeon R9 Nano
GPU comparison with benchmarksIn the gpu comparison between the ASUS TUF Gaming X3 Radeon RX 5700 OC Evo and the GIGABYTE Radeon R9 Nano, we compare both the technical data and the benchmark results of the two graphics cards.
|
||
GPUThe ASUS TUF Gaming X3 Radeon RX 5700 OC Evo is based on the AMD Radeon RX 5700 and has 2304 texture shaders and 36 execution units. GIGABYTE Radeon R9 Nano is based on AMD Radeon R9 Nano, which has 4096 shaders and 64 execution units. |
||
| ASUS TUF Gaming X3 Radeon RX 5700 OC Evo | GPU | GIGABYTE Radeon R9 Nano |
| AMD Radeon RX 5700 | Based on | AMD Radeon R9 Nano |
| Navi 10 | GPU Chip | Fiji XT CA |
| RDNA 1 | Architecture | Fiji |
| 36 | Streaming Multiprocessors | 64 |
| 2304 | Shader | 4096 |
| 64 | Render Output Units | 64 |
| 144 | Texture Units | 256 |
| 0 | Raytracing Cores | 0 |
MemoryThe ASUS TUF Gaming X3 Radeon RX 5700 OC Evo has 8 GB of graphics memory of the type GDDR6 and achieves a memory bandwidth of 448 GB/s. The GIGABYTE Radeon R9 Nano can access 4 GB HBM graphics memory and thus achieves a memory bandwidth of 512 GB/s. |
||
| 8 GB | Memory Size | 4 GB |
| GDDR6 | Memory Type | HBM |
| 1.750 GHz | Memory Clock | 0.500 GHz |
| 14.0 Gbps | Memory Speed | 1.0 Gbps |
| 448 GB/s | Memory bandwidth | 512 GB/s |
| 256 bit | Memory Interface | 4096 bit |
Clock SpeedsThe ASUS TUF Gaming X3 Radeon RX 5700 OC Evo clocks in the base with up to 1.610 GHz. The base frequency of the GIGABYTE Radeon R9 Nano is 1.000 GHz. |
||
| 1.610 GHz | Base Clock | 1.000 GHz |
| 1.750 GHz | Boost Clock | 1.000 GHz |
| 1.73 GHz | Avg (Game) Clock | |
| Yes | Overclocking | Yes |
Thermal DesignThe TDP (Thermal Design Power) of the ASUS TUF Gaming X3 Radeon RX 5700 OC Evo is 180 W. The graphics card is supplied with energy via the 1 x 6-Pin, 1 x 8-Pin connector. The GIGABYTE Radeon R9 Nano has a TDP of 175 W and is supplied with the required energy via 1 x 8-Pin PCIe power connectors. |
||
| 180 W | TDP | 175 W |
| 220 W | TDP (up) | -- |
| 98 °C | Tjunction max | 85 °C |
| 1 x 6-Pin, 1 x 8-Pin | PCIe-Power | 1 x 8-Pin |
Cooler & FansThe ASUS TUF Gaming X3 Radeon RX 5700 OC Evo has a total of 3 Axial fans. The GIGABYTE Radeon R9 Nano has 1 Axial (Radiator) fans to cool the GPU and memory. |
||
| Axial | Fan-Type | Axial (Radiator) |
| 2 x 90 mm | Fan 1 | 1 x 90 mm |
| 1 x 80 mm | Fan 2 | -- |
| Air cooling | Cooler-Type | Air cooling |
| 0 dB | Noise (Idle) | dB |
| 44 dB | Noise (Load) | -- |
ConnectivityIn the connectivity category, we recorded the number of ports on a graphics card. A total of 4 screens can be connected to the ASUS TUF Gaming X3 Radeon RX 5700 OC Evo. The GIGABYTE Radeon R9 Nano supports a maximum of 4 screens. |
||
| 4 | Max. Displays | 4 |
| 2.3 | HDCP-Version | 0 |
| 1x HDMI v2.0b | HDMI Ports | 1x HDMI v1.4a |
| 3x DP v1.4 | DP Ports | 3x DP v1.2 |
| -- | DVI Ports | -- |
| -- | VGA Ports | -- |
| -- | USB-C Ports | -- |
FeaturesetThe ASUS TUF Gaming X3 Radeon RX 5700 OC Evo supports a maximum resolution of 7680x4320 pixels. The maximum resolution of the GIGABYTE Radeon R9 Nano is 4096x2160 pixels. |
||
| 7680x4320 | Max. resolution | 4096x2160 |
| 12_2 (Ultimate) | DirectX | 12_0 |
| No | Raytracing | No |
| Yes | DLSS / FSR | No |
| No LED lighting | LED | No LED lighting |
Supported Video CodecsThe support and acceleration of certain video codecs directly in the graphics card reduces the load when playing or creating videos. |
||
| Decode / Encode | h264 | Decode / Encode |
| Decode / Encode | h265 / HEVC | Decode |
| No | AV1 | No |
| Decode | VP8 | No |
| Decode / Encode | VP9 | No |
DimensionsThe ASUS TUF Gaming X3 Radeon RX 5700 OC Evo is 282 mm long, 128 mm high and 54 mm wide. The GIGABYTE Radeon R9 Nano is 154 mm long, 105 mm high and 35 mm wide. |
||
| 282 mm | Length | 154 mm |
| 128 mm | Height | 105 mm |
| 54 mm | Width | 35 mm |
| 3 PCIe-Slots | Width (Slots) | 2 PCIe-Slots |
| -- | Weight | -- |
| PCIe 4.0 x 16 | GPU Interface | PCIe 3.0 x 16 |
| No | SFF-Ready | No |
Additional dataThe ASUS TUF Gaming X3 Radeon RX 5700 OC Evo was released in Q3/2019 at a price of 349 $. The GIGABYTE Radeon R9 Nano was introduced in Q3/2015 at a price of 649 $ (Reference). |
||
| -- | Part-no | GV-R9NANO-4GD-B |
| Q3/2019 | Release date | Q3/2015 |
| 349 $ | Launch Price | 649 $ (Reference) |
| 7 nm | Structure size | 28 nm |
| data sheet | Documents | -- |
1.610 GHz, 8 GB (180 W TDP)
Buy this graphic card at amazon!
1.000 GHz, 4 GB (175 W TDP)
Buy this graphic card at amazon!
Rate these graphics cards now
Benchmark results
3DMark Benchmark (DirectX, Raytracing)
3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.
Time Spy Extreme Graphics score
|
ASUS TUF Gaming X3 Radeon RX 5700 OC Evo
8 GB GDDR6 |
||
|
GIGABYTE Radeon R9 Nano
4 GB HBM |
||
Cyberpunk 2077
Cyberpunk 2077 was developed by CD Projekt Red and is based on the development studio's own REDengine 4. Ray tracing is switched off in our benchmarks.
3840x2160 (2160p)
|
|
ASUS TUF Gaming X3 Radeon RX 5700 OC Evo
8 GB GDDR6 |
||
2560x1440 (1440p)
|
|
ASUS TUF Gaming X3 Radeon RX 5700 OC Evo
8 GB GDDR6 |
||
1920x1080 (1080p)
|
|
ASUS TUF Gaming X3 Radeon RX 5700 OC Evo
8 GB GDDR6 |
||
The Last of Us Part 1
The Last of Us Part One is a game released by Sony in June 2013 exclusively for the Playstation and released for the PC in early 2023. The benchmark values here were determined at high details.
2560x1440 (1440p)
|
|
ASUS TUF Gaming X3 Radeon RX 5700 OC Evo
8 GB GDDR6 |
||
1920x1080 (1080p)
|
|
ASUS TUF Gaming X3 Radeon RX 5700 OC Evo
8 GB GDDR6 |
||
Battlefield 5
Battlefield 5 is a visually stunning game that is ideal as a graphics card benchmark. We test the game with maximum details on Windows 10.
3840x2160 (2160p)
|
|
ASUS TUF Gaming X3 Radeon RX 5700 OC Evo
8 GB GDDR6 |
||
2560x1440 (1440p)
|
|
ASUS TUF Gaming X3 Radeon RX 5700 OC Evo
8 GB GDDR6 |
||
1920x1080 (1080p)
|
|
ASUS TUF Gaming X3 Radeon RX 5700 OC Evo
8 GB GDDR6 |
||
Geekbench 6 (OpenCL, Vulkan, Metal)
Geekbench 6 is a cross-platform benchmark for main processors, which also carries out 3 different graphics benchmarks and outputs them in the form of a numerical value.
Geekbench 6 - OpenCL
|
|
ASUS TUF Gaming X3 Radeon RX 5700 OC Evo
8 GB GDDR6 |
||
|
|
GIGABYTE Radeon R9 Nano
4 GB HBM |
||
Geekbench 6 - Vulkan
|
|
ASUS TUF Gaming X3 Radeon RX 5700 OC Evo
8 GB GDDR6 |
||
|
|
GIGABYTE Radeon R9 Nano
4 GB HBM |
||
Geekbench 6 - Metal
|
|
ASUS TUF Gaming X3 Radeon RX 5700 OC Evo
8 GB GDDR6 |
||
|
|
GIGABYTE Radeon R9 Nano
4 GB HBM |
||
FP32 Performance (Single-precision TFLOPS)
The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.
FP32 (TFLOPS)
|
|
ASUS TUF Gaming X3 Radeon RX 5700 OC Evo
8 GB GDDR6 |
||
|
|
GIGABYTE Radeon R9 Nano
4 GB HBM |
||
