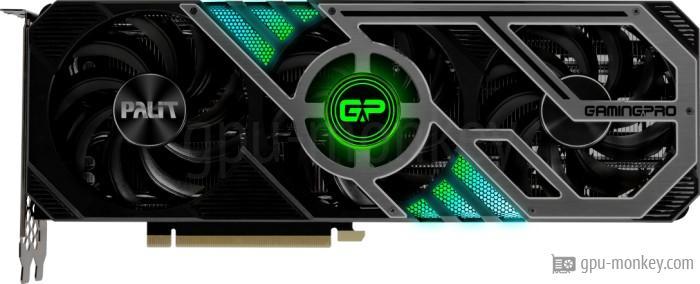

Palit GeForce RTX 3080 Ti GamingPro
vs
PNY RTX A5000
GPU comparison with benchmarksIn the gpu comparison between the Palit GeForce RTX 3080 Ti GamingPro and the PNY RTX A5000, we compare both the technical data and the benchmark results of the two graphics cards.
|
||
GPUThe Palit GeForce RTX 3080 Ti GamingPro is based on the NVIDIA GeForce RTX 3080 Ti and has 10240 texture shaders and 80 execution units. PNY RTX A5000 is based on NVIDIA RTX A5000, which has 8192 shaders and 64 execution units. |
||
| Palit GeForce RTX 3080 Ti GamingPro | GPU | PNY RTX A5000 |
| NVIDIA GeForce RTX 3080 Ti | Based on | NVIDIA RTX A5000 |
| GA102-225-A1 | GPU Chip | GA102 |
| Ampere | Architecture | Ampere |
| 80 | Streaming Multiprocessors | 64 |
| 10240 | Shader | 8192 |
| 112 | Render Output Units | 96 |
| 320 | Texture Units | 256 |
| 80 | Raytracing Cores | 64 |
MemoryThe Palit GeForce RTX 3080 Ti GamingPro has 12 GB of graphics memory of the type GDDR6X and achieves a memory bandwidth of 912 GB/s. The PNY RTX A5000 can access 24 GB GDDR6 graphics memory and thus achieves a memory bandwidth of 768 GB/s. |
||
| 12 GB | Memory Size | 24 GB |
| GDDR6X | Memory Type | GDDR6 |
| 1.188 GHz | Memory Clock | 2.000 GHz |
| 19.0 Gbps | Memory Speed | 16.0 Gbps |
| 912 GB/s | Memory bandwidth | 768 GB/s |
| 384 bit | Memory Interface | 384 bit |
Clock SpeedsThe Palit GeForce RTX 3080 Ti GamingPro clocks in the base with up to 1.365 GHz. The base frequency of the PNY RTX A5000 is 1.170 GHz. |
||
| 1.365 GHz | Base Clock | 1.170 GHz |
| 1.665 GHz | Boost Clock | 1.695 GHz |
| Avg (Game) Clock | ||
| Yes | Overclocking | Yes |
Thermal DesignThe TDP (Thermal Design Power) of the Palit GeForce RTX 3080 Ti GamingPro is 350 W. The graphics card is supplied with energy via the 2 x 8-Pin connector. The PNY RTX A5000 has a TDP of 230 W and is supplied with the required energy via 1 x 8-Pin PCIe power connectors. |
||
| 350 W | TDP | 230 W |
| -- | TDP (up) | -- |
| 93 °C | Tjunction max | 93 °C |
| 2 x 8-Pin | PCIe-Power | 1 x 8-Pin |
Cooler & FansThe Palit GeForce RTX 3080 Ti GamingPro has a total of 3 Axial fans. The PNY RTX A5000 has 1 Radial fans to cool the GPU and memory. |
||
| Axial | Fan-Type | Radial |
| 3 x 90 mm | Fan 1 | 1 x 65 mm |
| -- | Fan 2 | -- |
| Air cooling | Cooler-Type | Air cooling |
| 0 dB | Noise (Idle) | dB |
| -- | Noise (Load) | -- |
ConnectivityIn the connectivity category, we recorded the number of ports on a graphics card. A total of 4 screens can be connected to the Palit GeForce RTX 3080 Ti GamingPro. The PNY RTX A5000 supports a maximum of 4 screens. |
||
| 4 | Max. Displays | 4 |
| 2.3 | HDCP-Version | 2.3 |
| 1x HDMI v2.1 | HDMI Ports | -- |
| 3x DP v1.4a | DP Ports | 4x DP v1.4 |
| -- | DVI Ports | -- |
| -- | VGA Ports | -- |
| -- | USB-C Ports | -- |
FeaturesetThe Palit GeForce RTX 3080 Ti GamingPro supports a maximum resolution of 7680x4320 pixels. The maximum resolution of the PNY RTX A5000 is 7680x4320 pixels. |
||
| 7680x4320 | Max. resolution | 7680x4320 |
| 12_2 (Ultimate) | DirectX | 12_2 (Ultimate) |
| Yes | Raytracing | Yes |
| Yes | DLSS / FSR | Yes |
| Addressable LED | LED | No LED lighting |
Supported Video CodecsThe support and acceleration of certain video codecs directly in the graphics card reduces the load when playing or creating videos. |
||
| Decode / Encode | h264 | Decode / Encode |
| Decode / Encode | h265 / HEVC | Decode / Encode |
| Decode | AV1 | Decode |
| Decode | VP8 | Decode |
| Decode | VP9 | Decode |
DimensionsThe Palit GeForce RTX 3080 Ti GamingPro is 294 mm long, 112 mm high and 60 mm wide. The PNY RTX A5000 is 267 mm long, 112 mm high and -- wide. |
||
| 294 mm | Length | 267 mm |
| 112 mm | Height | 112 mm |
| 60 mm | Width | -- |
| 3 PCIe-Slots | Width (Slots) | 2 PCIe-Slots |
| -- | Weight | 1025 g |
| PCIe 4.0 x 16 | GPU Interface | PCIe 4.0 x 16 |
| No | SFF-Ready | No |
Additional dataThe Palit GeForce RTX 3080 Ti GamingPro was released in Q2/2021 at a price of 1,199 $ (Reference). The PNY RTX A5000 was introduced in Q3/2021 at a price of 2,500 $. |
||
| NED308T019KB-132AA | Part-no | VCNRTXA5000-PB |
| Q2/2021 | Release date | Q3/2021 |
| 1,199 $ (Reference) | Launch Price | 2,500 $ |
| 8 nm | Structure size | 8 nm |
| data sheet | Documents | data sheet |
1.365 GHz, 12 GB (350 W TDP)
Buy this graphic card at amazon!
1.170 GHz, 24 GB (230 W TDP)
Buy this graphic card at amazon!
Rate these graphics cards now
Benchmark results
3DMark Benchmark (DirectX, Raytracing)
3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.
Time Spy Extreme Graphics score
|
Palit GeForce RTX 3080 Ti GamingPro
12 GB GDDR6X |
||
|
PNY RTX A5000
24 GB GDDR6 |
||
Port Royal (Raytracing)
|
|
Palit GeForce RTX 3080 Ti GamingPro
12 GB GDDR6X |
||
|
|
PNY RTX A5000
24 GB GDDR6 |
||
Speed Way Graphics Score (Raytracing)
|
|
Palit GeForce RTX 3080 Ti GamingPro
12 GB GDDR6X |
||
|
|
PNY RTX A5000
24 GB GDDR6 |
||
Cyberpunk 2077
Cyberpunk 2077 was developed by CD Projekt Red and is based on the development studio's own REDengine 4. Ray tracing is switched off in our benchmarks.
3840x2160 (2160p)
|
|
Palit GeForce RTX 3080 Ti GamingPro
12 GB GDDR6X |
||
2560x1440 (1440p)
|
|
Palit GeForce RTX 3080 Ti GamingPro
12 GB GDDR6X |
||
1920x1080 (1080p)
|
|
Palit GeForce RTX 3080 Ti GamingPro
12 GB GDDR6X |
||
The Last of Us Part 1
The Last of Us Part One is a game released by Sony in June 2013 exclusively for the Playstation and released for the PC in early 2023. The benchmark values here were determined at high details.
3840x2160 (2160p)
|
|
Palit GeForce RTX 3080 Ti GamingPro
12 GB GDDR6X |
||
2560x1440 (1440p)
|
|
Palit GeForce RTX 3080 Ti GamingPro
12 GB GDDR6X |
||
1920x1080 (1080p)
|
|
Palit GeForce RTX 3080 Ti GamingPro
12 GB GDDR6X |
||
Battlefield 5
Battlefield 5 is a visually stunning game that is ideal as a graphics card benchmark. We test the game with maximum details on Windows 10.
3840x2160 (2160p)
|
|
Palit GeForce RTX 3080 Ti GamingPro
12 GB GDDR6X |
||
2560x1440 (1440p)
|
|
Palit GeForce RTX 3080 Ti GamingPro
12 GB GDDR6X |
||
1920x1080 (1080p)
|
|
Palit GeForce RTX 3080 Ti GamingPro
12 GB GDDR6X |
||
Geekbench 6 (OpenCL, Vulkan, Metal)
Geekbench 6 is a cross-platform benchmark for main processors, which also carries out 3 different graphics benchmarks and outputs them in the form of a numerical value.
Geekbench 6 - OpenCL
|
|
Palit GeForce RTX 3080 Ti GamingPro
12 GB GDDR6X |
||
|
|
PNY RTX A5000
24 GB GDDR6 |
||
Geekbench 6 - Vulkan
|
|
Palit GeForce RTX 3080 Ti GamingPro
12 GB GDDR6X |
||
|
|
PNY RTX A5000
24 GB GDDR6 |
||
FP32 Performance (Single-precision TFLOPS)
The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.
FP32 (TFLOPS)
|
|
Palit GeForce RTX 3080 Ti GamingPro
12 GB GDDR6X |
||
|
|
PNY RTX A5000
24 GB GDDR6 |
||
