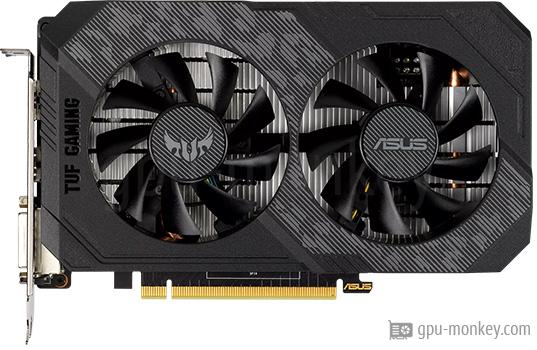

ASUS TUF Gaming GeForce GTX 1630 4GB Benchmark and Specs

The ASUS TUF Gaming GeForce GTX 1630 4GB has 8 execution units with 512 shaders. This gives the graphics card a theoretical FP32 computing power of 1.86 TFLOPS.

Based on

NVIDIA GeForce GTX 1630

GPU Chip

TU117-150 (Turing)

Streaming Multiprocessors

8

Shader

512

Render Output Units

16

Texture Units

32

The ASUS TUF Gaming GeForce GTX 1630 4GB is equipped with 4 GB graphics memory of the type GDDR6. The memory clock of the graphics card is 1.500 GHz and the speed is 12 Gbps.

Memory Size

4 GB

Memory Type

GDDR6

Memory Clock

1.500 GHz

Memory Speed

12.0 Gbps

Memory bandwidth

96 GB/s

Memory Interface

64 bit

The base frequency of this graphics card is 1.740 GHz and the manufacturer specifies the maximum turbo clock as 1.815 GHz. If supported (see below), the performance can be further increased by overclocking.

Base Clock

1.740 GHz

Boost Clock

1.815 GHz+2 %

Avg (Game) Clock

1.785 GHz

Overclocking

Yes

The ASUS TUF Gaming GeForce GTX 1630 4GB is powered by -- connectors. The TDP (Thermal Design Power) of the graphics card is 75 W.

TDP

75 W

Tjunction max

90 °C

Graphics processor and graphics memory of the ASUS TUF Gaming GeForce GTX 1630 4GB are cooled by a Air cooling.

Fan-Type

Axial

Fan 1

2 x 80 mm

Cooler-Type

Air cooling

Up to 3 monitors can be operated with the ASUS TUF Gaming GeForce GTX 1630 4GB.

Max. Displays

3

HDCP

2.2

HDMI

1x HDMI 2.0b

DisplayPort

1x DP 1.4a

DVI

1

With the ASUS TUF Gaming GeForce GTX 1630 4GB it is possible to operate a screen with a resolution of up to 7680x4320 pixels. Furthermore, the DirectX standard version 12_1 is supported.

Max. resolution

7680x4320

DirectX

12_1

Raytracing

No

DLSS / FSR

Yes

LED

No LED lighting

This area lists the video codecs that the ASUS TUF Gaming GeForce GTX 1630 4GB can decode or encode in hardware in order to minimize the processor load, which leads to lower power consumption.

h264

Decode / Encode

h265 / HEVC

Decode / Encode

VP8

Decode

VP9

Decode

AV1

No

The ASUS TUF Gaming GeForce GTX 1630 4GB needs the space of 3 PCIe-Slots in a case. It is 205 mm long, 125 mm high and 46 mm wide.

Length

205 mm

Height

125 mm

Width

46 mm

Width (Slots)

3 PCIe-Slots

SFF-Ready

No

The ASUS TUF Gaming GeForce GTX 1630 4GB was released in Q2/2022 at a price of 169 $. The graphics card manufactured in 12 nm is connected to the system via PCIe 3.0 x 8 lanes.

GPU Interface

PCIe 3.0 x 8

Release date

Q2/2022

Launch Price

169 $ (Reference)

Structure size

12 nm
