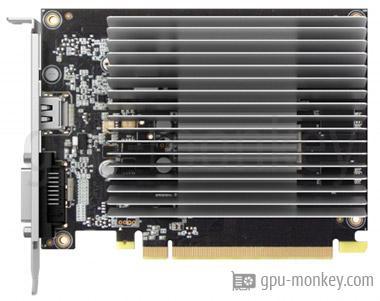

Gainward GeForce GT 1030 SilentFX
Benchmark and Specs

Gainward GeForce GT 1030 SilentFX

GPU

Based on: NVIDIA GeForce GT 1030
GPU Chip: GP108-300-A1
Execution units: 3
Shader: 384
Render Output Units: 16
Texture Units: 24

Memory

Memory Size: 2 GB
Memory Type: GDDR5
Memory Clock: 1.502 GHz
Memory Speed: 6 Gbps
Memory Bandwith: 48 GB/s
Memory Interface: 64 bit

Clock Speeds

Base Clock: 1.227 GHz
Boost Clock: 1.468 GHz
Avg (Game) Clock:
Overclocking: Yes

Thermal Design

TDP: 30 W
TDP (up): --
Tjunction max: --
PCIe-Power:

Cooler & Fans

Fan-Type: --
Fan 1: --
Fan 2: --
Cooler-Type: Passive
Noise (Idle): 0 dB / Silent
Noise (Load): 0 dB

Connectivity

Max. Displays: 2
HDCP-Version: 2.2
HDMI Ports: 1x HDMI v2.0b
DP Ports: --
DVI Ports: 1
VGA Ports: --
USB-C Ports: --

Featureset

Max. resolution: 7680x4320
DirectX: 12_1
Raytracing: No
DLSS / FSR: No
LED: No LED lighting

Supported Video Codecs

h264: Decode
h265 / HEVC: Decode
VP8: No
VP9: Decode
AV1: No

Dimensions

Length: 145 mm
Height: 112 mm
Width: --
Width (Slots): 2 PCIe-Slots
Weight: --

Additional data

GPU Interface: PCIe 3.0 x 4
Release date: Q2/2017
Release price: --
Structure size: 14 nm
Part-no: 426018336-3927
Documents: data sheet

Benchmark results

Battlefield 5 - 3840x2160 (2160p)

Battlefield 5 is a visually impressive game. It uses the third version of the "Frostbite Game Engine" developed by the manufacturer DICE. The engine is available for Windows, PS4, PS5, XBox One or XBox Series X. Many physics-based calculations are carried out directly in the game engine, which results in very realistic calculations. Due to its current features, Battlefield 5 is very suitable as a graphics card benchmark.

Test environment and settings: DirectX 12 API with max. Details, tested under Windows 10.
AMD Radeon RX 550 AMD Radeon RX 550
4 GB GDDR5
8 fps (avg)
Gainward GeForce GT 1030 SilentFX Gainward GeForce GT 1030 SilentFX
2 GB GDDR5
1 fps (avg)
NVIDIA GeForce GT 1030 (DDR4) NVIDIA GeForce GT 1030 (DDR4)
2 GB DDR4
1 fps (avg)
NVIDIA GeForce GT 1030 NVIDIA GeForce GT 1030
2 GB GDDR5
1 fps (avg)
View all Battlefield 5 benchmark results



Battlefield 5 - 2560x1440 (1440p)

Battlefield 5 is a visually impressive game. It uses the third version of the "Frostbite Game Engine" developed by the manufacturer DICE. The engine is available for Windows, PS4, PS5, XBox One or XBox Series X. Many physics-based calculations are carried out directly in the game engine, which results in very realistic calculations. Due to its current features, Battlefield 5 is very suitable as a graphics card benchmark.

Test environment and settings: DirectX 12 API with max. Details, tested under Windows 10.
NVIDIA GeForce GT 1030 (DDR4) NVIDIA GeForce GT 1030 (DDR4)
2 GB DDR4
17 fps (avg)
NVIDIA GeForce GT 1030 NVIDIA GeForce GT 1030
2 GB GDDR5
17 fps (avg)
Gainward GeForce GT 1030 SilentFX Gainward GeForce GT 1030 SilentFX
2 GB GDDR5
16 fps (avg)
AMD Radeon RX 550 AMD Radeon RX 550
4 GB GDDR5
16 fps (avg)
View all Battlefield 5 benchmark results



Battlefield 5 - 1920x1080 (1080p)

Battlefield 5 is a visually impressive game. It uses the third version of the "Frostbite Game Engine" developed by the manufacturer DICE. The engine is available for Windows, PS4, PS5, XBox One or XBox Series X. Many physics-based calculations are carried out directly in the game engine, which results in very realistic calculations. Due to its current features, Battlefield 5 is very suitable as a graphics card benchmark.

Test environment and settings: DirectX 12 API with max. Details, tested under Windows 10.
AMD Radeon RX 550 AMD Radeon RX 550
4 GB GDDR5
23 fps (avg)
NVIDIA GeForce GT 1030 (DDR4) NVIDIA GeForce GT 1030 (DDR4)
2 GB DDR4
22 fps (avg)
NVIDIA GeForce GT 1030 NVIDIA GeForce GT 1030
2 GB GDDR5
22 fps (avg)
Gainward GeForce GT 1030 SilentFX Gainward GeForce GT 1030 SilentFX
2 GB GDDR5
21 fps (avg)
View all Battlefield 5 benchmark results



Shadow of the Tomb Raider - 3840x2160 (2160p)

Shadow of the Tomb Raider is based on a modified version of the Crystal Dynamics Foundation engine. This engine was already used in the predecessor Rise of the Tomb Raider. The foundation engine supports a realistic representation of water and snow and shows the game characters detailed. The display of hair is also very realistic thanks to the support of TressFX (AMD) or HairWorks (NVIDIA).
AMD Radeon RX 550 AMD Radeon RX 550
4 GB GDDR5
6 fps (avg)
NVIDIA GeForce GT 1030 (DDR4) NVIDIA GeForce GT 1030 (DDR4)
2 GB DDR4
2 fps (avg)
NVIDIA GeForce GT 1030 NVIDIA GeForce GT 1030
2 GB GDDR5
1 fps (avg)
Gainward GeForce GT 1030 SilentFX Gainward GeForce GT 1030 SilentFX
2 GB GDDR5
1 fps (avg)
View all Shadow of the Tomb Raider benchmark results



Shadow of the Tomb Raider - 2560x1440 (1440p)

Shadow of the Tomb Raider is based on a modified version of the Crystal Dynamics Foundation engine. This engine was already used in the predecessor Rise of the Tomb Raider. The foundation engine supports a realistic representation of water and snow and shows the game characters detailed. The display of hair is also very realistic thanks to the support of TressFX (AMD) or HairWorks (NVIDIA).
AMD Radeon RX 550 AMD Radeon RX 550
4 GB GDDR5
14 fps (avg)
NVIDIA GeForce GT 1030 (DDR4) NVIDIA GeForce GT 1030 (DDR4)
2 GB DDR4
7 fps (avg)
NVIDIA GeForce GT 1030 NVIDIA GeForce GT 1030
2 GB GDDR5
7 fps (avg)
Gainward GeForce GT 1030 SilentFX Gainward GeForce GT 1030 SilentFX
2 GB GDDR5
6 fps (avg)
View all Shadow of the Tomb Raider benchmark results



Shadow of the Tomb Raider - 1920x1080 (1080p)

Shadow of the Tomb Raider is based on a modified version of the Crystal Dynamics Foundation engine. This engine was already used in the predecessor Rise of the Tomb Raider. The foundation engine supports a realistic representation of water and snow and shows the game characters detailed. The display of hair is also very realistic thanks to the support of TressFX (AMD) or HairWorks (NVIDIA).
AMD Radeon RX 550 AMD Radeon RX 550
4 GB GDDR5
21 fps (avg)
NVIDIA GeForce GT 1030 (DDR4) NVIDIA GeForce GT 1030 (DDR4)
2 GB DDR4
12 fps (avg)
NVIDIA GeForce GT 1030 NVIDIA GeForce GT 1030
2 GB GDDR5
12 fps (avg)
Gainward GeForce GT 1030 SilentFX Gainward GeForce GT 1030 SilentFX
2 GB GDDR5
11 fps (avg)
View all Shadow of the Tomb Raider benchmark results



FP32 Performance (Single-precision TFLOPS) - FP32 (TFLOPS)

The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS. TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second. The larger this number, the faster the graphics card is.

View all FP32 Performance (Single-precision TFLOPS) benchmark results




Recommended power supplies for this graphics card

Power Supply PCIe 8 Pin (6+2) Release price
