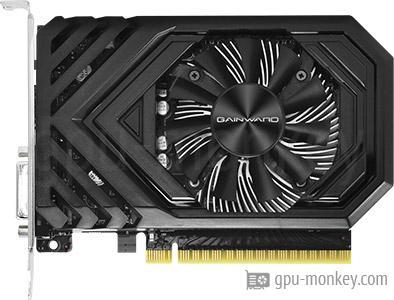

Gainward GeForce GTX 1650 Pegasus OC (DVI)
Benchmark and Specs
Last updated:
Benchmark and Specs
All technical data and various benchmarks of the Gainward GeForce GTX 1650 Pegasus OC (DVI) are listed on this page. The graphics card is based on the TU117-300-A1 (Turing) graphics chip, which is manufactured with a structure width of 12 nm. The Gainward GeForce GTX 1650 Pegasus OC (DVI) can operate up to 3 screens with a maximum resolution of up to 7680x4320 become.
GPUThe Gainward GeForce GTX 1650 Pegasus OC (DVI) has 14 execution units with 896 shaders. This gives the graphics card a theoretical FP32 computing power of 3.09 TFLOPS. |
|
| Based on: | NVIDIA GeForce GTX 1650 (GDDR5) |
| GPU Chip: | TU117-300-A1 (Turing) |
| Streaming Multiprocessors: | 14 |
| Shader: | 896 |
| Render Output Units: | 32 |
| Texture Units: | 56 |
| Raytracing Cores: | 0 |
MemoryThe Gainward GeForce GTX 1650 Pegasus OC (DVI) is equipped with 4 GB graphics memory of the type GDDR5. The memory clock of the graphics card is 2.000 GHz and the speed is 8 Gbps. |
|
| Memory Size: | 4 GB |
| Memory Type: | GDDR5 |
| Memory Clock: | 2.000 GHz |
| Memory Speed: | 8.0 Gbps |
| Memory bandwidth: | 128 GB/s |
| Memory Interface: | 128 bit |
Clock SpeedsThe base frequency of this graphics card is 1.485 GHz and the manufacturer specifies the maximum turbo clock as 1.725 GHz. If supported (see below), the performance can be further increased by overclocking. |
|
| Base Clock: | 1.485 GHz |
| Boost Clock: | 1.725 GHz + 4 % |
| Avg (Game) Clock: | 1.665 GHz |
| Overclocking: | Yes |
Thermal DesignThe Gainward GeForce GTX 1650 Pegasus OC (DVI) is powered by 1 x 6-Pin connectors. The TDP (Thermal Design Power) of the graphics card is 75 W. |
|
| TDP: | 75 W |
| TDP (up): | -- |
| Tjunction max: | 92 °C |
| PCIe-Power: | 1 x 6-Pin |
Cooler & FansGraphics processor and graphics memory of the Gainward GeForce GTX 1650 Pegasus OC (DVI) are cooled by a Air cooling. |
|
| Fan-Type: | Axial |
| Fan 1: | 1 x 70 mm |
| Fan 2: | -- |
| Cooler-Type: | Air cooling |
| Noise (Idle): | -- |
| Noise (Load): | -- |
ConnectivityUp to 3 monitors can be operated with the Gainward GeForce GTX 1650 Pegasus OC (DVI). |
|
| Max. Displays: | 3 |
| HDCP-Version: | 2.2 |
| HDMI Ports: | 1x HDMI v2.0b |
| DP Ports: | -- |
| DVI Ports: | 1 |
| VGA Ports: | -- |
| USB-C Ports: | -- |
FeaturesetWith the Gainward GeForce GTX 1650 Pegasus OC (DVI) it is possible to operate a screen with a resolution of up to 7680x4320 pixels. Furthermore, the DirectX standard version 12_1 is supported. |
|
| Max. resolution: | 7680x4320 |
| DirectX: | 12_1 |
| Raytracing: | No |
| DLSS / FSR: | Yes |
| LED: | No LED lighting |
Supported Video CodecsThis area lists the video codecs that the Gainward GeForce GTX 1650 Pegasus OC (DVI) can decode or encode in hardware in order to minimize the processor load, which leads to lower power consumption. |
|
| h264: | Decode / Encode |
| h265 / HEVC: | Decode / Encode |
| VP8: | Decode |
| VP9: | Decode |
| AV1: | No |
DimensionsThe Gainward GeForce GTX 1650 Pegasus OC (DVI) needs the space of 2 PCIe-Slots in a case. It is 145 mm long, 99 mm high and -- wide. |
|
| Length: | 145 mm |
| Height: | 99 mm |
| Width: | -- |
| Width (Slots): | 2 PCIe-Slots |
| Weight: | -- |
Additional dataThe Gainward GeForce GTX 1650 Pegasus OC (DVI) was released in Q2/2019 at a price of 149 $ (Reference). The graphics card manufactured in 12 nm is connected to the system via PCIe 3.0 x 16 lanes. |
|
| GPU Interface: | PCIe 3.0 x 16 |
| Release date: | Q2/2019 |
| Launch Price: | 149 $ (Reference) |
| Structure size: | 12 nm |
| Part-no: | NE51650S06G1-1170F |
| Documents: | data sheet |
1.485 GHz, 4 GB (75 W TDP)
Buy this graphic card at amazon!
Rate this graphics card
Benchmark results
3DMark Benchmark (DirectX, Raytracing)
3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.
Time Spy Extreme Graphics score
|
Gainward GeForce GTX 1650 Pegasus OC (DVI)
4 GB GDDR5 |
||
|
NVIDIA GeForce GTX 1650 (GDDR5)
Average of gpu group |
||
Battlefield 5
Battlefield 5 is a visually stunning game that is ideal as a graphics card benchmark. We test the game with maximum details on Windows 10.
3840x2160 (2160p)
|
|
Gainward GeForce GTX 1650 Pegasus OC (DVI)
4 GB GDDR5 |
||
|
|
NVIDIA GeForce GTX 1650 (GDDR5)
Average of gpu group |
||
2560x1440 (1440p)
|
|
Gainward GeForce GTX 1650 Pegasus OC (DVI)
4 GB GDDR5 |
||
|
|
NVIDIA GeForce GTX 1650 (GDDR5)
Average of gpu group |
||
1920x1080 (1080p)
|
|
Gainward GeForce GTX 1650 Pegasus OC (DVI)
4 GB GDDR5 |
||
|
|
NVIDIA GeForce GTX 1650 (GDDR5)
Average of gpu group |
||
Geekbench 6 (OpenCL, Vulkan, Metal)
Geekbench 6 is a cross-platform benchmark for main processors, which also carries out 3 different graphics benchmarks and outputs them in the form of a numerical value.
Geekbench 6 - OpenCL
|
|
Gainward GeForce GTX 1650 Pegasus OC (DVI)
4 GB GDDR5 |
||
|
|
NVIDIA GeForce GTX 1650 (GDDR5)
Average of gpu group |
||
Geekbench 6 - Vulkan
|
|
Gainward GeForce GTX 1650 Pegasus OC (DVI)
4 GB GDDR5 |
||
|
|
NVIDIA GeForce GTX 1650 (GDDR5)
Average of gpu group |
||
FP32 Performance (Single-precision TFLOPS)
The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.
FP32 (TFLOPS)
|
|
Gainward GeForce GTX 1650 Pegasus OC (DVI)
4 GB GDDR5 |
||
More benchmarks
In order to determine the performance of a graphics card, so-called "benchmarks" are carried out. The benchmark software carries out special calculations to determine the performance of a graphics card. We use so-called theoretical or synthetic benchmarks (e.g. 3D Mark) as well as real game benchmarks. To ensure real comparability of the results, we pay attention to the correct execution of the benchmarks as well as the condition of the graphics card and the system.We use the following benchmarks to measure the performance of a graphics card:
3DMark Benchmark
5,148 entries
5,148 entries
GTA 5 Benchmark
4,624 entries
4,624 entries
Shadow of the Tomb Raider
5,148 entries
5,148 entries
Battlefield 5
4,510 entries
4,510 entries
Geekbench 6
5,151 entries
5,151 entries
Crypto-Mining Ergo Hashrate
3,737 entries
3,737 entries
Crypto-Mining Ravencoin Hashrate
3,664 entries
3,664 entries
FP32 Performance
5,522 entries
5,522 entries
