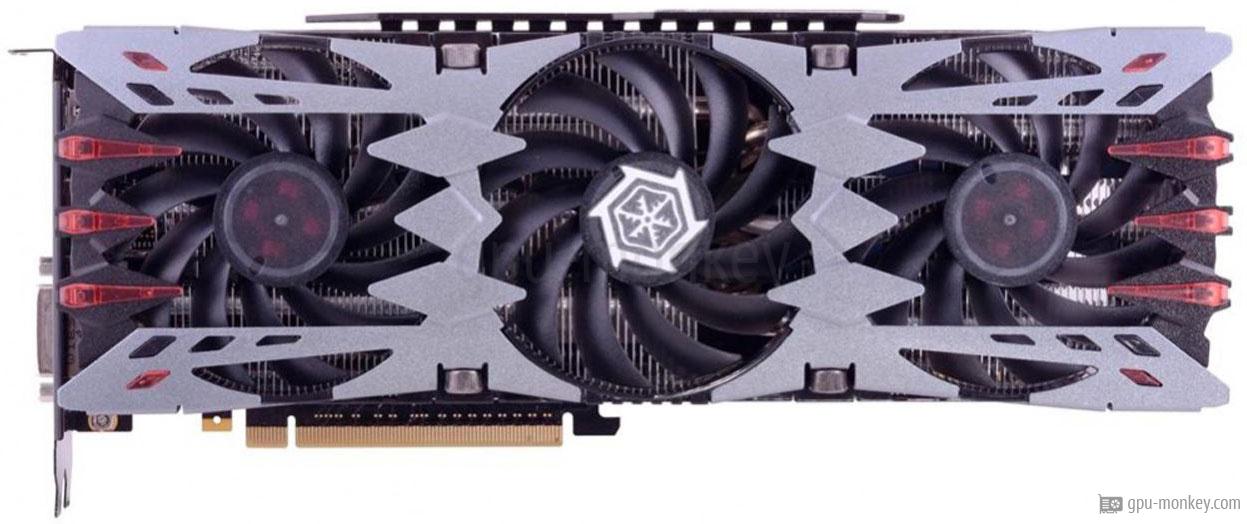

INNO3D GeForce GTX 960 iCHILL X3 Air Boss Ultra
Benchmark and Specs
Last updated:
Benchmark and Specs
Here we show you benchmarks and technical data for the INNO3D GeForce GTX 960 iCHILL X3 Air Boss Ultra. The graphics card is based on the NVIDIA GeForce GTX 960 (Maxwell 2.0) and has 2 GB GDDR5 graphics memory with a memory bandwidth of 112 GB/s. The INNO3D GeForce GTX 960 iCHILL X3 Air Boss Ultra has 8 execution units with 1024 shaders.
GPUThe INNO3D GeForce GTX 960 iCHILL X3 Air Boss Ultra has 1024 shaders and 8 execution units. The graphics card thus achieves a theoretical FP32 computing power of 2.85 TFLOPS. |
|
| Based on: | NVIDIA GeForce GTX 960 |
| GPU Chip: | GM206-300-A1 (Maxwell 2.0) |
| Streaming Multiprocessors: | 8 |
| Shader: | 1024 |
| Render Output Units: | 32 |
| Texture Units: | 64 |
| Raytracing Cores: | 0 |
MemoryThe INNO3D GeForce GTX 960 iCHILL X3 Air Boss Ultra can use 2 GB graphics memory of the type GDDR5. The graphics card thus achieves a memory bandwidth of 112 GB/s on a 128 bit wide memory interface. |
|
| Memory Size: | 2 GB |
| Memory Type: | GDDR5 |
| Memory Clock: | 1.753 GHz |
| Memory Speed: | 7.0 Gbps |
| Memory bandwidth: | 112 GB/s |
| Memory Interface: | 128 bit |
Clock SpeedsThe base clock frequency of the INNO3D GeForce GTX 960 iCHILL X3 Air Boss Ultra is 1.329 GHz. A high clock frequency (even in turbo mode) can greatly increase the speed of a graphics card. |
|
| Base Clock: | 1.329 GHz + 18 % |
| Boost Clock: | 1.393 GHz+ 18 % |
| Avg (Game) Clock: | |
| Overclocking: | Yes |
Thermal DesignThe TDP (Thermal Design Power) of the INNO3D GeForce GTX 960 iCHILL X3 Air Boss Ultra is 120 W. The graphics card is supplied with energy via the 2 x 6-Pin connector. |
|
| TDP: | 120 W |
| TDP (up): | -- |
| Tjunction max: | 98 °C |
| PCIe-Power: | 2 x 6-Pin |
Cooler & FansThe INNO3D GeForce GTX 960 iCHILL X3 Air Boss Ultra has a total of 3 Axial fans to cool the graphics processor and graphics memory. |
|
| Fan-Type: | Axial |
| Fan 1: | 3 x 90 mm |
| Fan 2: | -- |
| Cooler-Type: | Air cooling |
| Noise (Idle): | 0 dB / Silent |
| Noise (Load): | -- |
ConnectivityUp to 4 screens can be connected to the INNO3D GeForce GTX 960 iCHILL X3 Air Boss Ultra. |
|
| Max. Displays: | 4 |
| HDCP-Version: | 2.2 |
| HDMI Ports: | 1x HDMI v2.0 |
| DP Ports: | 3x DP v1.2 |
| DVI Ports: | 1 |
| VGA Ports: | -- |
| USB-C Ports: | -- |
FeaturesetThe INNO3D GeForce GTX 960 iCHILL X3 Air Boss Ultra has a maximum resolution of 4096x2160 pixels. The graphics card supports the DirectX 12_1 standard. |
|
| Max. resolution: | 4096x2160 |
| DirectX: | 12_1 |
| Raytracing: | No |
| DLSS / FSR: | No |
| LED: | Addressable LED |
Supported Video CodecsThe video codecs accelerated in hardware by the INNO3D GeForce GTX 960 iCHILL X3 Air Boss Ultra reduce the processor load and ensure lower energy consumption. |
|
| h264: | Decode / Encode |
| h265 / HEVC: | No |
| VP8: | Decode |
| VP9: | No |
| AV1: | No |
DimensionsThe INNO3D GeForce GTX 960 iCHILL X3 Air Boss Ultra is 300 mm long and 115 mm high. With a width of --, the graphics card requires 2 PCIe-Slots in the case. |
|
| Length: | 300 mm |
| Height: | 115 mm |
| Width: | -- |
| Width (Slots): | 2 PCIe-Slots |
| Weight: | -- |
Additional dataThe INNO3D GeForce GTX 960 iCHILL X3 Air Boss Ultra made in 28 nm was published in Q1/2015 for 249 $. |
|
| GPU Interface: | PCIe 3 x 16 |
| Release date: | Q1/2015 |
| Launch Price: | 249 $ |
| Structure size: | 28 nm |
| Part-no: | C960-2SDN-E5CNX |
| Documents: | -- |
1.329 GHz, 2 GB (120 W TDP)
Buy this graphic card at amazon!
Rate this graphics card
Benchmark results
3DMark Benchmark (DirectX, Raytracing)
3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.
Time Spy Extreme Graphics score
|
INNO3D GeForce GTX 960 iCHILL X3 Air Boss Ultra
2 GB GDDR5 |
||
|
NVIDIA GeForce GTX 960
Average of gpu group |
||
Geekbench 6 (OpenCL, Vulkan, Metal)
Geekbench 6 is a cross-platform benchmark for main processors, which also carries out 3 different graphics benchmarks and outputs them in the form of a numerical value.
Geekbench 6 - OpenCL
|
|
INNO3D GeForce GTX 960 iCHILL X3 Air Boss Ultra
2 GB GDDR5 |
||
|
|
NVIDIA GeForce GTX 960
Average of gpu group |
||
Geekbench 6 - Vulkan
|
|
INNO3D GeForce GTX 960 iCHILL X3 Air Boss Ultra
2 GB GDDR5 |
||
|
|
NVIDIA GeForce GTX 960
Average of gpu group |
||
FP32 Performance (Single-precision TFLOPS)
The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.
FP32 (TFLOPS)
More benchmarks
In order to determine the performance of a graphics card, so-called "benchmarks" are carried out. The benchmark software carries out special calculations to determine the performance of a graphics card. We use so-called theoretical or synthetic benchmarks (e.g. 3D Mark) as well as real game benchmarks. To ensure real comparability of the results, we pay attention to the correct execution of the benchmarks as well as the condition of the graphics card and the system.We use the following benchmarks to measure the performance of a graphics card:
3DMark Benchmark
5,159 entries
5,159 entries
Shadow of the Tomb Raider
5,148 entries
5,148 entries
Geekbench 6
5,151 entries
5,151 entries
FP32 Performance
5,522 entries
5,522 entries
